STT13005, STT13005D, STT168BB20

Table of contents:
Info of STT13005
Info of STT13005D
Info of STT168BB20

STT13005, STT13005D, STT168BB20 Selling Leads, Datasheet

MFG:STMicroelectronics Category:Discrete Semiconductor Products Package Cooled:ORG PACKING D/C:08+

STT13005, STT13005D, STT168BB20 Datasheet download

Five Points

Part Number: STT13005

Category: Discrete Semiconductor Products

MFG: STMicroelectronics

Package Cooled: ORG PACKING

D/C: 08+

Description: TRANS NPN FAST SW BIPOLAR

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

STT13005 Parameters

Technical/Catalog Information	STT13005
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	400V
Current - Collector (Ic) (Max)	2A
Power - Max	45W
DC Current Gain (hFE) (Min) @ Ic, Vce	10 @ 500mA, 5V
Vce Saturation (Max) @ Ib, Ic	1V @ 200mA, 800mA
Frequency - Transition	-
Current - Collector Cutoff (Max)	250A
Mounting Type	Through Hole

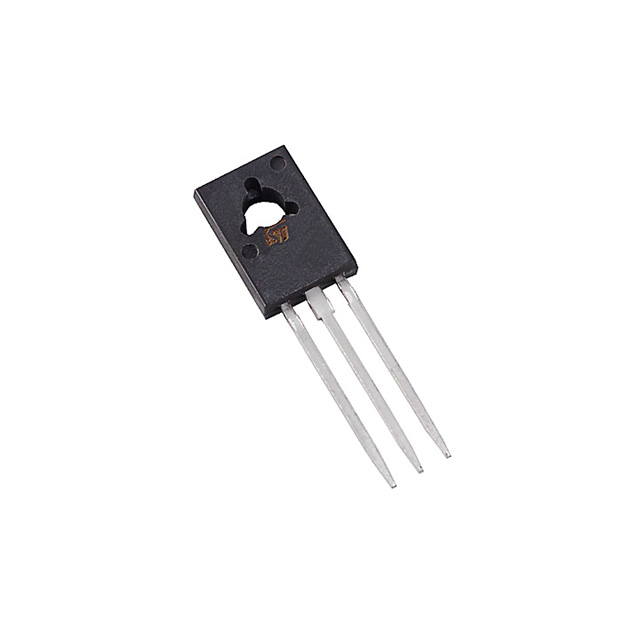

Package / Case	SOT-32-3, TO-126-3
Packaging	Tube
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	STT13005 STT13005 497 7573 5 ND 49775735ND 497-7573-5

STT13005D Parameters

Technical/Catalog Information	STT13005D
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	400V
Current - Collector (Ic) (Max)	2A
Power - Max	45W
DC Current Gain (hFE) (Min) @ Ic, Vce	10 @ 500mA, 5V
Vce Saturation (Max) @ Ib, Ic	1V @ 200mA, 800mA
Frequency - Transition	-
Current - Collector Cutoff (Max)	250A
Mounting Type	Through Hole
Package / Case	SOT-32-3, TO-126-3
Packaging	Tape & Reel (TR)
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	STT13005D STT13005D
