This 9-bit to 18-bit D-type latch is designed for 3.15-V to 3.45-V VCC operation. The D inputs accept HSTL levels and the Q outputs provide LVTTL levels.
The SN74HSTL16918 is particularly suitable for driving an address bus to two banks of memory. Each bank of nine outputs is controlled with its own latch-enable (LE) input.
Each of the nine D inputs is tied to the inputs of two D-type latches that provide true data (Q) at the outputs. While LE is low, the Q outputs of the corresponding nine latches follow the D inputs. WhenLE is taken high, the Q outputs are latched at the levels set up at the D inputs.
The SN74HSTL16918 is characterized for operation from 0°C to 70°C.
SN74HSTL16918 Maximum Ratings
Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –0.5 V to 4.6 V Input voltage range, VI (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –0.5 V to VCC + 0.5 V Output voltage range, VO (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . –0.5 V to VCC + 0.5 V Input clamp current, IIK (VI < 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –50 mA Output clamp current, IOK (VO < 0 or VO > VCC) (see Note 2) . . . . . . . . . . . . . . . . . . . . . ±50 mA Continuous output current, IO (VO = 0 to VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±50 mA Continuous current through each VCC or GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±100 mA Package thermal impedance, θJA (see Note 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89℃/W Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .–65℃ to 150℃ † Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. NOTES: 1. The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed. 2. This current flows only when the output is in the high state and VO > VCC. 3. The package thermal impedance is calculated in accordance with JESD 51.
SN74HSTL16918 Features

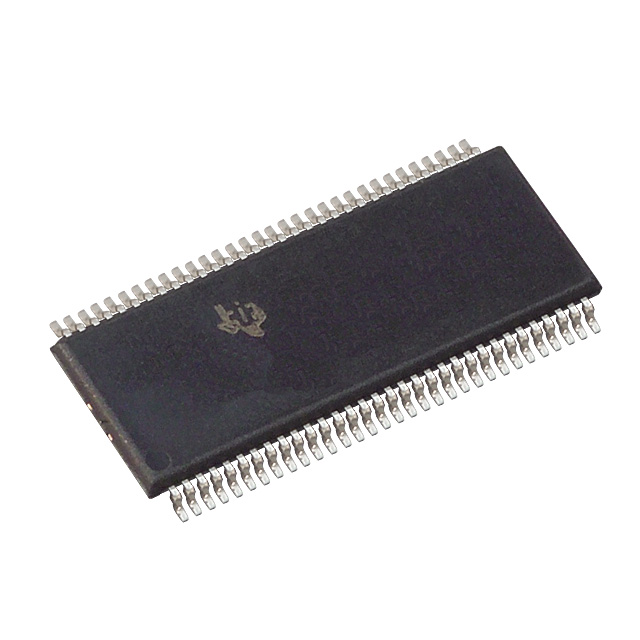

· Member of the Texas Instruments WidebusE Family · Inputs Meet JEDEC HSTL Std JESD 8-6 and Outputs Meet Level III Specifications · ESD Protection Exceeds 2000 V Per MIL-STD-883, Method 3015; Exceeds 200 V Using Machine Model (C = 200 pF, R = 0) · Latch-Up Performance Exceeds 250 mA Per JESD 17 · Packaged in Plastic Thin Shrink Small-Outline Package
