SN74ACT534NSR, SN74ACT534NSRE4, SN74ACT534NSRG4

Table of contents:
Info of SN74ACT534NSR
Info of SN74ACT534NSRE4
Info of SN74ACT534NSRG4

SN74ACT534NSR, SN74ACT534NSRE4, SN74ACT534NSRG4 Selling Leads, Datasheet

MFG:Texas Instruments Category:Integrated Circuits (ICs) D/C:2010+

SN74ACT534NSR, SN74ACT534NSRE4, SN74ACT534NSRG4 Datasheet download

Five Points

Part Number: SN74ACT534NSR

Category: Integrated Circuits (ICs)

MFG: Texas Instruments

Package Cooled:

D/C: 2010+

Description: SN74ACT534NSRG4

Price Break

2000

Unit Price

.31920

Extended Price

638.40

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

SN74ACT534NSR Parameters

Technical/Catalog Information	SN74ACT534NSR
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount

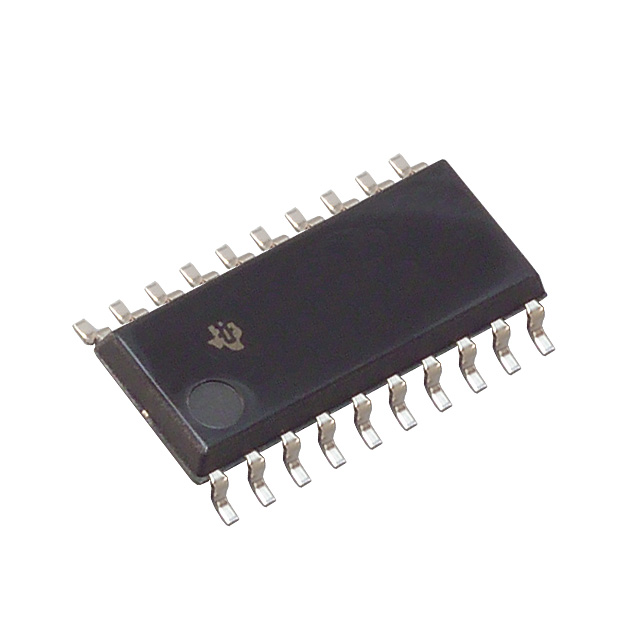

Package / Case	20-SOP
Function	Standard
Number of Bits per Element	8
Number of Elements	1 - Single
Current - Output High, Low	24mA, 24mA
Output Type	Tri-State Inverted
Trigger Type	Positive Edge
Type	D-Type Bus
Packaging	Tape & Reel (TR)
Operating Temperature	-40°C ~ 85°C
Delay Time - Propagation	2.5ns
Frequency - Clock	100MHz
Voltage - Supply	4.5 V ~ 5.5 V
Drawing Number	296; 4040062; NS; 14, 16, 20, 24
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74ACT534NSR SN74ACT534NSR

SN74ACT534NSRE4 Parameters

Technical/Catalog Information	SN74ACT534NSRE4
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount
Package / Case	20-SOP
Function	Standard
Number of Bits per Element	8
Number of Elements	1 - Single
Current - Output High, Low	24mA, 24mA
Output Type	Tri-State Inverted
Trigger Type	Positive Edge
Type	D-Type Bus
Packaging	Tape & Reel (TR)
Operating Temperature	-40°C ~ 85°C
Delay Time - Propagation	2.5ns
Frequency - Clock	100MHz
Voltage - Supply	4.5 V ~ 5.5 V
Drawing Number	296; 4040062; NS; 14, 16, 20, 24
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74ACT534NSRE4 SN74ACT534NSRE4

SN74ACT534NSRG4 Parameters

Technical/Catalog Information	SN74ACT534NSRG4
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount
Package / Case	20-SOP
Function	Standard
Number of Bits per Element	8
Number of Elements	1 - Single
Current - Output High, Low	24mA, 24mA
Output Type	Tri-State Inverted
Trigger Type	Positive Edge
Type	D-Type Bus
Packaging	Tape & Reel (TR)
Operating Temperature	-40°C ~ 85°C
Delay Time - Propagation	2.5ns
Frequency - Clock	100MHz
Voltage - Supply	4.5 V ~ 5.5 V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74ACT534NSRG4 SN74ACT534NSRG4
