SN74ABT574ARGYR, SN74ABT574ARGYRG4, SN74ABT574AZQNR

Table of contents:
Info of SN74ABT574ARGYR
Info of SN74ABT574ARGYRG4
Info of SN74ABT574AZQNR

SN74ABT574ARGYR, SN74ABT574ARGYRG4, SN74ABT574AZQNR Selling Leads, Datasheet

MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:QFN20 D/C:2010+

SN74ABT574ARGYR, SN74ABT574ARGYRG4, SN74ABT574AZQNR Datasheet download

Five Points

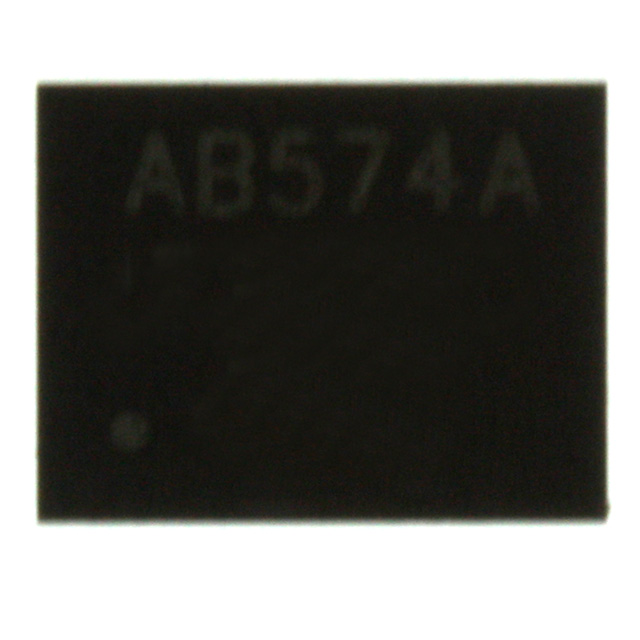

Part Number: SN74ABT574ARGYR

Category: Integrated Circuits (ICs)

MFG: Texas Instruments

Package Cooled: QFN20

D/C: 2010+

Description: IC OCT EDG-TRIG D F-F 3ST 20-BGA

Price Break

1
25
100
250
500

Unit Price

.92000
.69000
.51750
.38180
.32200

Extended Price

0.92
17.25
51.75
95.45
161.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

SN74ABT574ARGYR Parameters

Technical/Catalog Information	SN74ABT574ARGYR
Vendor	Texas Instruments (VA)
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount
Package / Case	20-QFN
Function	Standard
Number of Bits per Element	8
Number of Elements	1 - Single
Current - Output High, Low	32mA, 64mA
Output Type	Tri-State Non Inverted
Trigger Type	Positive Edge
Type	D-Type Bus
Packaging	Digi-Reel?
Operating Temperature	-40°C ~ 85°C
Delay Time - Propagation	3.9ns
Frequency - Clock	200MHz
Voltage - Supply	4.5 V ~ 5.5 V
Drawing Number	296; 4203539-4; RGY; 20
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	SN74ABT574ARGYR SN74ABT574ARGYR 296 13892 6 ND 296138926ND 296-13892-6

SN74ABT574ARGYR General Description

These 8-bit flip-flops feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

The eight flip-flops of the SN54ABT574 and SN74ABT574A are edge-triggered D-type flip-flops. On the positive transition of the clock (CLK) input, the Q outputs are set to the logic levels set up at the data (D) inputs.

A buffered output-enable (OE) input can be used to place the eight outputs in either a normal logic state (high or low logic levels) or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without need for interface or pullup components.OE does not affect the internal operations of the flip-flops. Old data can be retained or new data can be entered while the outputs are in the high-impedance state.

To ensure the high-impedance state during power up or power down, OE should be tied to V_CC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

SN74ABT574ARGYR Maximum Ratings

Supply voltage range, V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 7 V
Input voltage range, V_I (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −0.5 V to 7 V
Voltage range applied to any output in the high or power-off state, V_O...−0.5 V to 5.5 V
Current into any output in the low state, I_O: SN54ABT574 . . . 96 mA
SN74ABT574A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128 mA
Input clamp current, I_IK (V_I < 0) . . . . . . . . . . . . . . . . . . . . −18 mA
Output clamp current, I_OK (V_O< 0) . . . . . . . . . . . . . . . . . .−50 mA
Package thermal impedance, JA (see Note 2): DB package . . . . . . 70/W
(see Note 2): DW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58/W
(see Note 2): GQN/ZQN package . . . . . . . . . . . . . . . . . . . . . . . . . . .78/W
(see Note 2): N package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69/W
(see Note 2): NS package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60/W
(see Note 2): PW package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83/W
(see Note 3): RGY package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37/W
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . −65 to 150
† Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
2. The package thermal impedance is calculated in accordance with JESD 51-7.
3. The package thermal impedance is calculated in accordance with JESD 51-5.

SN74ABT574ARGYR Features

` Typical V_OLP (Output Ground Bounce) <1 V at V_CC = 5 V, T_A = 25
` High-Drive Outputs (−32-mA IOH, 64-mA I_OL)
` Ioff Supports Partial-Power-Down Mode Operation
` Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD 17
` ESD Protection Exceeds JESD 22
− 2000-V Human-Body Model (A114-A)
− 200-V Machine Model (A115-A)

SN74ABT574ARGYR Connection Diagram

SN74ABT574ARGYRG4 Parameters

Technical/Catalog Information	SN74ABT574ARGYRG4
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount
Package / Case	20-QFN
Function	Standard
Number of Bits per Element	8
Number of Elements	1 - Single
Current - Output High, Low	32mA, 64mA
Output Type	Tri-State Non Inverted
Trigger Type	Positive Edge
Type	D-Type Bus
Packaging	Tape & Reel (TR)
Operating Temperature	-40°C ~ 85°C
Delay Time - Propagation	3.9ns
Frequency - Clock	200MHz
Voltage - Supply	4.5 V ~ 5.5 V
Drawing Number	296; 4203539-4; RGY; 20
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74ABT574ARGYRG4 SN74ABT574ARGYRG4

SN74ABT574AZQNR Parameters

Technical/Catalog Information	SN74ABT574AZQNR
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount
Package / Case	20-BGA MICROSTAR JUNIOR
Function	Standard
Number of Bits per Element	8
Number of Elements	1 - Single
Current - Output High, Low	32mA, 64mA
Output Type	Tri-State Non Inverted
Trigger Type	Positive Edge
Type	D-Type Bus
Packaging	Tape & Reel (TR)
Operating Temperature	-40°C ~ 85°C
Delay Time - Propagation	3.9ns
Frequency - Clock	200MHz
Voltage - Supply	4.5 V ~ 5.5 V
Drawing Number	296; 4204492; ZQN; 20
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SN74ABT574AZQNR SN74ABT574AZQNR
