MFG:Infineon Technologies Category:Discrete Semiconductor Products Package Cooled:PG-TO220-2-2 D/C:2008+

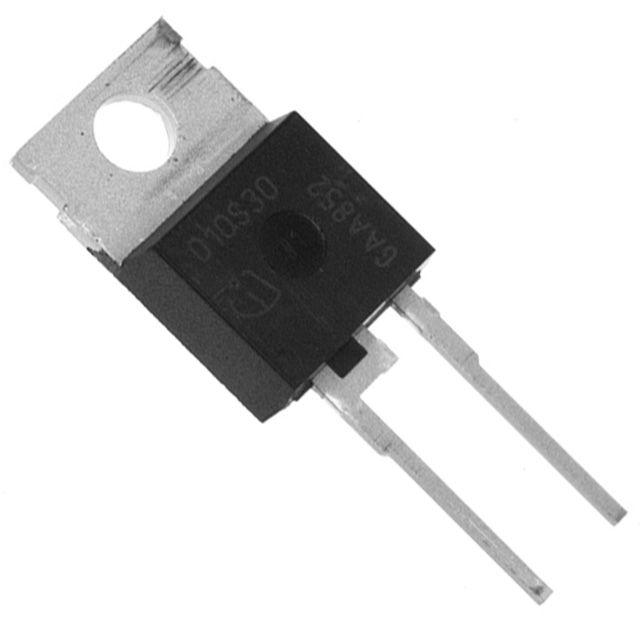

SDT10S30, SDT10S60, SDT-1205P-100-120 Datasheet download
Category: Discrete Semiconductor Products
MFG: Infineon Technologies
Package Cooled: PG-TO220-2-2
D/C: 2008+
Description: DIODE SCHOTTKY 10A 600V TO220-2
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SDT10S30
File Size: 633806 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SDT10S60
File Size: 212316 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SDT02S60
File Size: 209371 KB
Manufacturer: INFINEON [Infineon Technologies AG]
Download : Click here to Download
| Technical/Catalog Information | SDT10S30 |
| Vendor | Infineon Technologies |
| Category | Discrete Semiconductor Products |
| Diode Type | Silicon Carbide |
| Voltage - DC Reverse (Vr) (Max) | 300V |
| Current - Average Rectified (Io) | 10A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.7V @ 10A |
| Reverse Recovery Time (trr) | 0ns |
| Current - Reverse Leakage @ Vr | 200A @ 300V |
| Speed | No Recovery Time > 500mA (Io) |
| Mounting Type | Through Hole, Radial |
| Package / Case | TO-220AC |
| Packaging | Tube |
| Capacitance @ Vr, F | 600pF @ 0V, 1MHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SDT10S30 SDT10S30 SDT10S30IN ND SDT10S30INND SDT10S30IN |
| Parameter |
Symbol |
Value |
Unit |
| Continuous forward current, TC=100 |
IF |
10 |
A |
| RMS forward current, f=50Hz |
IFRMS |
14 | |
| Surge non repetitive forward current, sine halfwave TC=25, tp=10ms |
IFSM |
36 | |
| Repetitive peak forward current Tj=150, TC=100, D=0.1 |
IFRM |
45 | |
| Non repetitive peak forward current tp=10µs, TC=25 |
IFMAX |
100 | |
| i 2t value, TC=25, tp=10ms |
i2dt |
6.5 |
A²s |
| Repetitive peak reverse voltage |
VRRM |
300 |
V |
| Surge peak reverse voltage |
VRSM |
300 | |
| Power dissipation, TC=25 |
Ptot |
65 |
W |
| Operating and storage temperature |
Tj , Tstg |
-55... +175 |
|
| Technical/Catalog Information | SDT10S60 |
| Vendor | Infineon Technologies |
| Category | Discrete Semiconductor Products |
| Diode Type | Silicon Carbide |
| Voltage - DC Reverse (Vr) (Max) | 600V |
| Current - Average Rectified (Io) | 10A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.7V @ 10A |
| Reverse Recovery Time (trr) | 0ns |
| Current - Reverse Leakage @ Vr | 350A @ 600V |
| Speed | No Recovery Time > 500mA (Io) |
| Mounting Type | Through Hole, Radial |
| Package / Case | TO-220-2 |
| Packaging | Tape & Reel (TR) |
| Capacitance @ Vr, F | 350pF @ 0V, 1MHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SDT10S60 SDT10S60 |
|
Parameter |
Symbol |
Value |
Unit |
| Continuous forward current, TC=100°C |
IF |
10 |
A |
| RMS forward current, f=50Hz |
IFRMS |
14.1 | |
| Surge non repetitive forward current, sine halfwave TC=25°C, tp=10ms |
IFSM |
31 | |
| Repetitive peak forward current Tj=150°C, TC=100°C, D=0.1 |
IFRM |
39 | |
| Non repetitive peak forward current tp=10s, TC=25°C |
IFMAX |
100 | |
| i 2t value, TC=25°C, tp=10ms |
Ji2dt |
4.8 |
A2s |
| Repetitive peak reverse voltage |
VRRM |
600 |
V |
| Surge peak reverse voltage |
VRSM |
600 | |
| Power dissipation, TC=25°C |
Ptot |
75 |
W |
| Operating and storage temperature |
Tj,Tstg |
-55to+175 |
