SDT05H

Features: • Transient protection for data lines to IEC61000-4-2(ESD) 15KV(air), 8KV(contact )• Small package for use in portable electronics• Low operating and clamping voltage• Protects five I/O linesApplication• Cell phone Handsets and Accessories• Microproces...

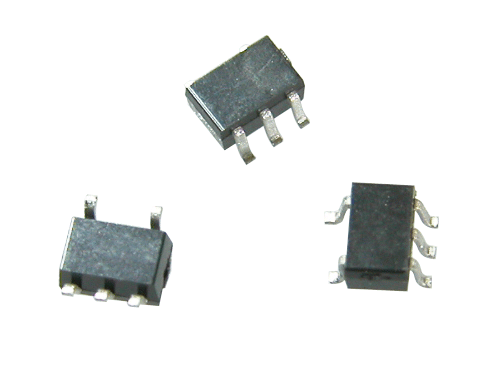

product image

SDT05H Picture
See larger image
SeekIC No. : 004487196 Detail

SDT05H: Features: • Transient protection for data lines to IEC61000-4-2(ESD) 15KV(air), 8KV(contact )• Small package for use in portable electronics• Low operating and clamping voltageR...

SDT05H Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SDT05H
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Transient protection for data lines to IEC61000-4-2(ESD) 15KV(air), 8KV(contact )
• Small package for use in portable electronics
• Low operating and clamping voltage
• Protects five I/O lines




Application

• Cell phone Handsets and Accessories
• Microprocessor based equipment
• Notebooks, Desktops and Servers

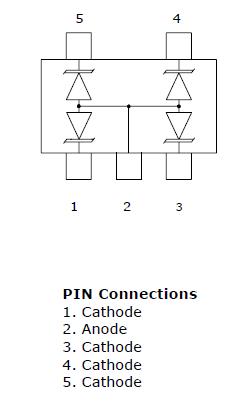

Pinout



Connection Diagram




Specifications

Characteristic
Symbol
Ratings
Unit
Peak pulse power ( tp = 8/20s)
PPK
200
W
Peak pulse current (tp = 8/20s)
IPP
12
A
Peak forward voltage(IF=1A, tp = 8/20s)
VFP
1.5
V
Lead soldering temperature
TL
260(10sec.)
Operating temperature
TJ
-55to125
Storage temperature
Tstg
-55to150





Description

Transient protections for data lines
This production of the SDT05H offers to protect against voltage surges in a variety of inductive switching applications. It porvide the most robust protection in the smallset footprint available. Suitable replacement for multi-layer varistors in ESD protections applications
