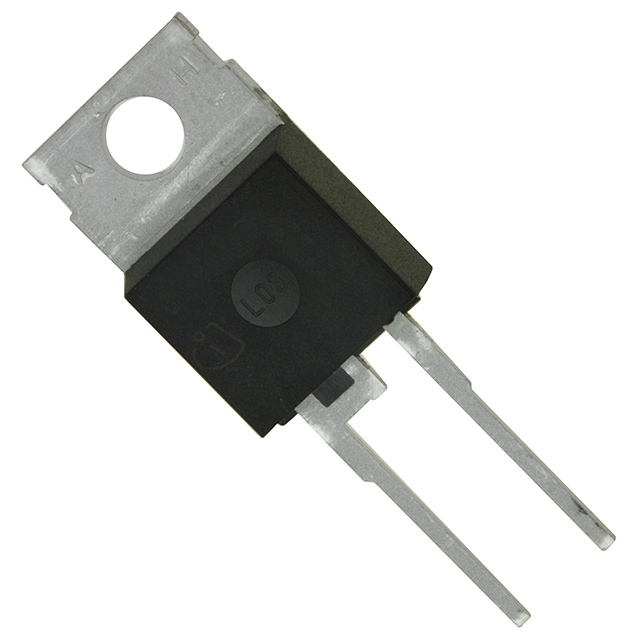

Part Number: SDT04S60

Category: Discrete Semiconductor Products

MFG: Infineon Technologies

Package Cooled: 14X0.5K

D/C: 07+

Description: SCHOTTKY 600V 4A TO220-2-2

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

SDT04S60 Parameters

Technical/Catalog Information	SDT04S60
Vendor	Infineon Technologies
Category	Discrete Semiconductor Products
Diode Type	Silicon Carbide
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	4A (DC)
Voltage - Forward (Vf) (Max) @ If	1.9V @ 4A
Reverse Recovery Time (trr)	0ns
Current - Reverse Leakage @ Vr	200A @ 600V
Speed	No Recovery Time > 500mA (Io)
Mounting Type	Through Hole, Radial
Package / Case	TO-220AC
Packaging	Tube
Capacitance @ Vr, F	150pF @ 0V, 1MHz
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SDT04S60 SDT04S60 SDT04S60IN ND SDT04S60INND SDT04S60IN

SDT04S60 Maximum Ratings

Parameter	Symbol	Value	Unit
Continuous forward current, T_C=100	I_F	4	A
RMS forward current, f=50Hz	I_FRMS	5.6
Surge non repetitive forward current, sine halfwave T_C=25, tp=10ms	I_FSM	12.5
Repetitive peak forward current T_j=150, T_C=100, D=0.1	I_FRM	18
Non repetitive peak forward current t_p=10µs, T_C=25	I_FMAX	40
i ²t value, T_C=25, t_p=10ms	_i2dt	0.78	A²s
Repetitive peak reverse voltage	V_RRM	600	V
Surge peak reverse voltage	V_RSM	600	V
Power dissipation, T_C=25	P_tot	36.5	W
Operating and storage temperature	T_j, T_stg	-55... +175

SDT04S60 Features

• Worlds first 600V Schottky diode
• Revolutionary semiconductor material - Silicon Carbide
• Switching behavior benchmark
• No reverse recovery
• No temperature influence on the switching behavior
• Ideal diode for Power Factor Correction up to 800W¹)
• No forward recovery
