RTQ035P02 / TL, RTQ035P02TR, RTQ045N03

Table of contents:
Info of RTQ035P02 / TL
Info of RTQ035P02TR
Info of RTQ045N03

RTQ035P02 / TL, RTQ035P02TR, RTQ045N03 Selling Leads, Datasheet

MFG:Rohm Semiconductor(VA) Category:Discrete Semiconductor Products Package Cooled:2006+ D/C:05+PB10K

RTQ035P02 / TL, RTQ035P02TR, RTQ045N03 Datasheet download

Five Points

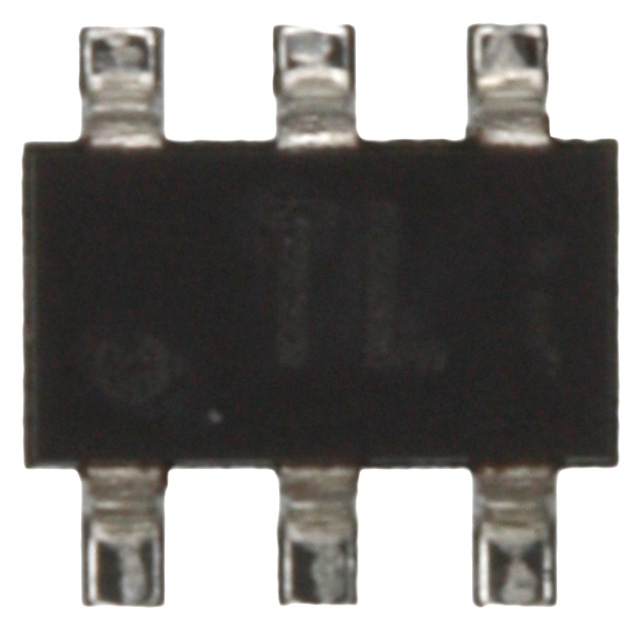

Part Number: RTQ035P02TR

Category: Discrete Semiconductor Products

MFG: Rohm Semiconductor(VA)

Package Cooled: 2006+

D/C: 05+PB10K

Description: MOSFET P-CH 20V 3.5A TSMT6

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

RTQ035P02TR Parameters

Technical/Catalog Information	RTQ035P02TR
Vendor	Rohm Semiconductor(VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	3.5A
Rds On (Max) @ Id, Vgs	65 mOhm @ 3.5A, 4.5V
Input Capacitance (Ciss) @ Vds	1200pF @ 10V
Power - Max	1.25W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	10.5nC @ 4.5V
Package / Case	TSMT6
FET Feature	Logic Level Gate
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	RTQ035P02TR RTQ035P02TR RTQ035P02DKR ND RTQ035P02DKRND RTQ035P02DKR

RTQ045N03 Maximum Ratings

Parameter		Symbol	Limits	Unit
Drain-source voltage		V_DSS	30	V
Gate-source voltage		V_GSS	12	V
Drain current	Continuous	L_D	±4.5	A
Drain current	Pulsed	L_DP	±18	A
Source current (Body diode)	Continuous	L_S	1.0	A
Source current (Body diode)	Pulsed	L_SP	4.0	A
Total power dissipation (T_C=25°C)		P_D	1.25	W
Channel temperature		T_ch	150	°C
Storage temperature		T_stg	−55~150	°C

RTQ045N03 Features

Low on-resistance.
Built-in G-S Protection Diode.
Small and Surface Mount Package (TSMT6) .

RTQ045N03 Typical Application

Power switching, DC / DC converter.
