MFG:Cirrus Logic Inc Category:Integrated Circuits (ICs) Package Cooled:PLCC44 D/C:00+
PA7204JN-20, PA73, PA-7365 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Cirrus Logic Inc
Package Cooled: PLCC44
D/C: 00+
Description: IC PWR AMP 60V 5A C 8PIN TO3
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: PA7024
File Size: 437297 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PA73M/883
File Size: 376832 KB
Manufacturer: APEX
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PA-1001A
File Size: 192332 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
| Technical/Catalog Information | PA73 |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | Power |
| Number of Circuits | 1 - Single |
| Package / Case | TO-3-8 |
| Slew Rate | 2.6 V/s |
| Gain Bandwidth Product | 1MHz |
| Current - Supply | 2.6mA |
| Current - Output / Channel | 5A |
| Voltage - Supply, Single/Dual (±) | 20 V ~ 60 V, ±10 V ~ 30 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 15nA |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Input Offset | 5000V |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | PA73 PA73 598 1319 ND 5981319ND 598-1319 |

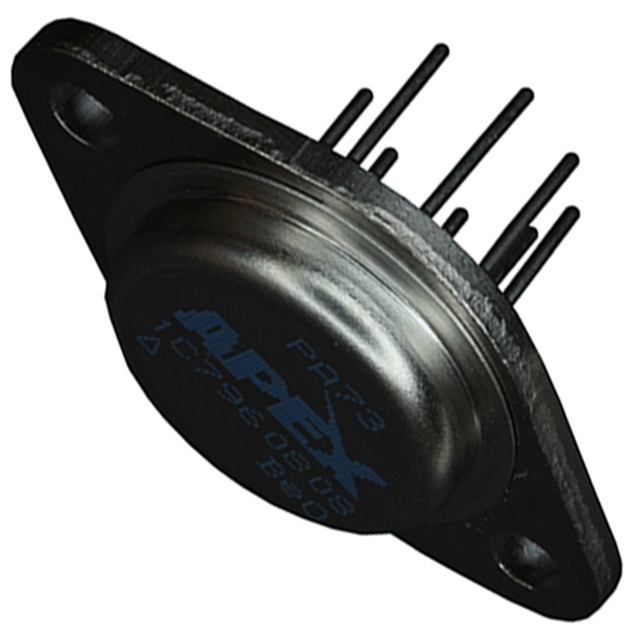

The PA01 and PA73 are high voltage, high output current operational amplifiers designed to drive resistive, inductive and capacitive loads. For optimum linearity, the PA01 has a class A/B output stage. The PA73 has a simple class C output stage (see Note 1) to reduce cost for motor control and other applications where crossover distortion is not critical and to provide interchangeability with type 3573 amplifiers. The safe operating area (SOA) can be observed for all operating conditions by selection of user programmable current limit resistors.
These amplifiers are internally compensated for all gain settings. For continuous operation under load, a heatsink of proper rating is recommended. This hybrid integrated circuit utilizes thick film (cermet) resistors, ceramic capacitors and semiconductor chips to maximize reliability, minimize size and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The 8-pin TO-3 package is hermetically sealed and electrically isolated. The use of compressible thermal washers and/or improper mounting torque will void the product warranty. Please see "General Operating Considerations".
