PA7493

Features: * Stereo switch able bridged/single-ended power amplifiers* Output power 2W * 2 (VCC=6V, THD=1%, RL=4)* Low harmonics distortion* Include 32 steps volume controller by DC voltage with hysteresis* Click and pop suppression circuitry* Low current consumption in SHUTDOWN Mode(0.7A)* Therm...

product image

PA7493 Picture
See larger image
SeekIC No. : 004453875 Detail

PA7493: Features: * Stereo switch able bridged/single-ended power amplifiers* Output power 2W * 2 (VCC=6V, THD=1%, RL=4)* Low harmonics distortion* Include 32 steps volume controller by DC voltage with hyst...

PA7493 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PA7493
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* Stereo switch able bridged/single-ended power amplifiers
* Output power 2W * 2 (VCC=6V, THD=1%, RL=4)
* Low harmonics distortion
* Include 32 steps volume controller by DC voltage with hysteresis
* "Click and pop" suppression circuitry
* Low current consumption in SHUTDOWN Mode(0.7A)
* Thermal shutdown

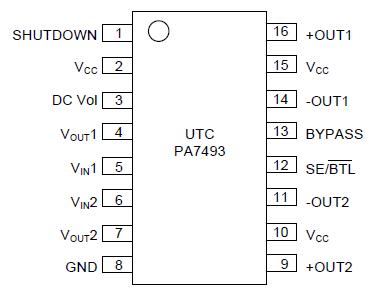

Pinout

Connection Diagram


Specifications

Symbol
Parameter
 Rating
Unit
VCC
 Supply Voltage
0~7
V
VIN
 Input Voltage
-0.3~VCC+0.3
V
IIN
 Input Current
-10~+10
mA
TOPR
 Operating Temperature
-40~+85
°C
TSTG
 Storage Temperature
-65~+150
°C
Note: 1. Absolute maximum ratings are those values beyond which the device could be permanently damaged.
             Absolute maximum ratings are stress ratings only and functional device operation is not implied.
2. Input pins surge current can be reached 100mA will not induce the CMOS latched up.


Description

UTC PA7493 provides precise DC volume control, and a stereo bridged audio power amplifiers capable of producing 2W into 4 as a monolithic integrated circuit. In stand-by the power consumption of PA7493 is very low. UTC PA7493 combines a stereo single-end (SE) mode for headphone drive into a single chip and a stereo bridge-tied loads (BTL) mode fof PA7493 or speaker drive(both modes are easily switched by the SE/BTL input control signal) to simplify the audio system design. Package size is not occupies PCB space cause the built-in over-temperature protection. It is suitable for small or portable products.
