MFG:ON Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:SOT1206 D/C:53157

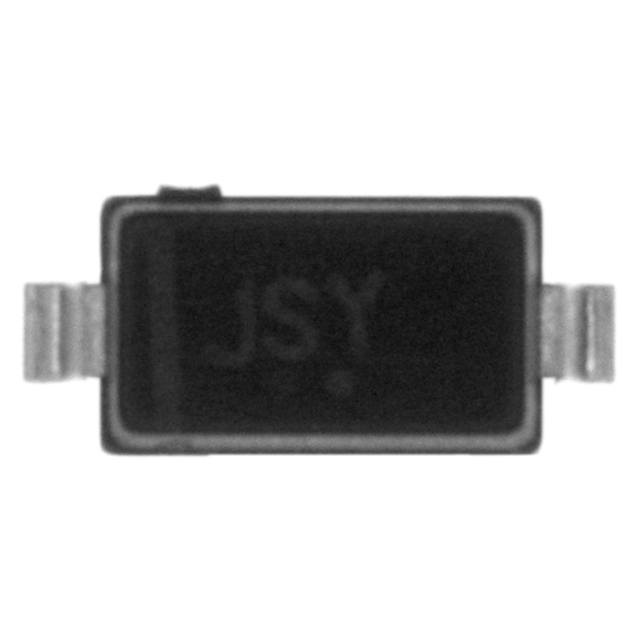

MMSD103T1, MMSD103T1G, MMSD103T1G JSL Datasheet download
Category: Discrete Semiconductor Products
MFG: ON Semiconductor (VA)
Package Cooled: SOT1206
D/C: 53157
Description: DIODE SWITCHING 250V SOD-123
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: MMSD103T1
File Size: 46841 KB
Manufacturer: ONSEMI [ON Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MMSD1000LT1
File Size: 175632 KB
Manufacturer: MOTOROLA [Motorola, Inc]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: MMSD1000LT1
File Size: 175632 KB
Manufacturer: MOTOROLA [Motorola, Inc]
Download : Click here to Download
|
Rating |
Symbol |
Value |
Unit |
| Continuous Reverse Voltage |
VR |
250 |
Vdc |
| Peak Forward Current |
IF |
200 |
mAdc |
| Peak Forward Surge Current |
IFM(surge) |
625 |
mAdc |
| Technical/Catalog Information | MMSD103T1G |
| Vendor | ON Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 250V |
| Current - Average Rectified (Io) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.25V @ 200mA |
| Reverse Recovery Time (trr) | 50ns |
| Current - Reverse Leakage @ Vr | 1A @ 250V |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123 |
| Packaging | Digi-Reel? |
| Capacitance @ Vr, F | 5pF @ 0V, 1MHz |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MMSD103T1G MMSD103T1G MMSD103T1GOSDKR ND MMSD103T1GOSDKRND MMSD103T1GOSDKR |
