MMSD4148

Rectifiers Hi Conductance Fast

product image

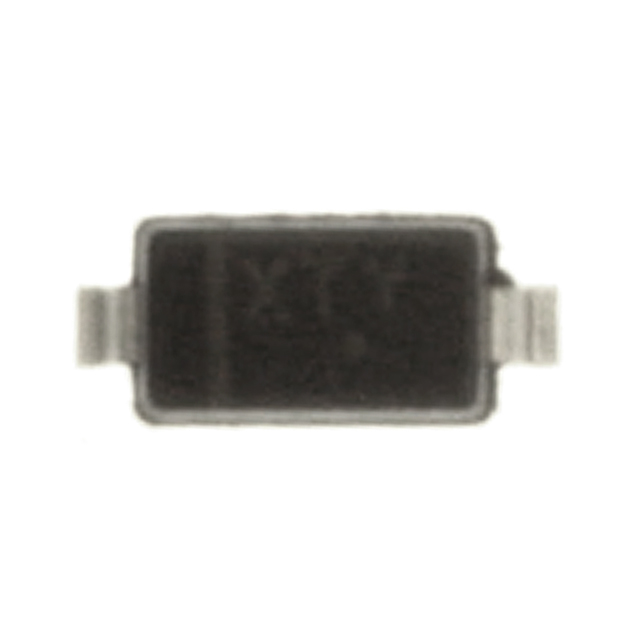

MMSD4148 Picture
SeekIC No. : 00168646 Detail

MMSD4148: Rectifiers Hi Conductance Fast

floor Price/Ceiling Price

US $ .05~.14 / Piece | Get Latest Price
Part Number:
MMSD4148
Mfg:
Fairchild Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.14
  • $.11
  • $.08
  • $.05
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/13

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Ultra Fast Recovery Rectifiers Configuration : Single
Reverse Voltage : 100 V Forward Voltage Drop : 1 V at 0.01 A
Recovery Time : 4 ns Forward Continuous Current : 0.2 A
Max Surge Current : 2 A Reverse Current IR : 5 uA at 75 V
Mounting Style : SMD/SMT Package / Case : SOD-123
Packaging : Reel

Description

Product : Ultra Fast Recovery Rectifiers
Mounting Style : SMD/SMT
Packaging : Reel
Configuration : Single
Recovery Time : 4 ns
Max Surge Current : 2 A
Reverse Voltage : 100 V
Forward Continuous Current : 0.2 A
Reverse Current IR : 5 uA at 75 V
Forward Voltage Drop : 1 V at 0.01 A
Package / Case : SOD-123


Features:

· Compact surface mount with same footprint as mini-melf.
· 400 milliwatt Power Dissipation package.
· High Breakdown Voltage, Fast Switching Speed.
· Typical capacitance less than 1.5 picofarad.






Specifications

Sym
Parameter
Value
Units
Tstg
Storage Temperature
-55 to +150
TJ
Operating Junction Temperature
-55 to +150
PD
Total Power Dissipation at TA = 25
Linear Derating Factor from TA = 25
400
3.2
W
mW/
ROJA
Thermal Resistance Junction-to-Ambient
312
/W
Wiv
Working Inverse Voltage
75
V
IO
Average Rectified Current
200
mA
IF
DC Forward Current (IF)
600
mA
iF(surge)
Peak Forward Surge Current (IFSM) Pulse Width = 1.0 Second
Pulse Width = 1.0 microsecond
1.0
2.0
Amp
Amp




Product Product status Eco Status Pricing* Package type Leads Packing method Package Drawing Package Marking Convention**
MMSD4148 Full Production RoHS Compliant $0.0367 SOD-123 2 TAPE REEL Line 1: &Y (Binary Calendar Year Coding)
Line 2: 5H
MMSD4148_D87Z Full Production RoHS Compliant N/A SOD-123 2 TAPE REEL Line 1: &Y (Binary Calendar Year Coding)
Line 2: 5H
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product MMSD4148 is available. Click here for more information .





Description

The high breakdown voltage, fast switching speed and high forward conductance of this MMSD4148 diode packaged in a SOD-123 Surface Mount package makes it desirable also as a general purpose diode.






Parameters:

Technical/Catalog InformationMMSD4148
VendorFairchild Semiconductor
CategoryDiscrete Semiconductor Products
Diode Type Standard
Voltage - DC Reverse (Vr) (Max)100V
Current - Average Rectified (Io)200mA
Voltage - Forward (Vf) (Max) @ If1V @ 10mA
Reverse Recovery Time (trr)4ns
Current - Reverse Leakage @ Vr5A @ 75V
SpeedSmall Signal =< 200mA (Io), Any Speed
Mounting TypeSurface Mount
Package / CaseSOD-123
PackagingTape & Reel (TR)
Capacitance @ Vr, F4pF @ 0V, 1MHz
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MMSD4148
MMSD4148
