MJL21194G, MJL21195, MJL21195G

Table of contents:
Info of MJL21194G
Info of MJL21195
Info of MJL21195G

MJL21194G, MJL21195, MJL21195G Selling Leads, Datasheet

MFG:ON Semiconductor Category:Discrete Semiconductor Products Package Cooled:1000 D/C:08+/09+

MJL21194G, MJL21195, MJL21195G Datasheet download

Five Points

Part Number: MJL21194G

Category: Discrete Semiconductor Products

MFG: ON Semiconductor

Package Cooled: 1000

D/C: 08+/09+

Description: TRANS PWR COMP 16A 250V TO264

Price Break

1
10
100
250
500
1000
5000

Unit Price

5.04000
4.68000
3.78000
3.06000
2.61000
2.43000
2.25000

Extended Price

5.04
46.80
378.00
765.00
1305.00
2430.00
11250.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

MJL21194G Parameters

Technical/Catalog Information	MJL21194G
Vendor	ON Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	250V
Current - Collector (Ic) (Max)	16A
Power - Max	200W
DC Current Gain (hFE) (Min) @ Ic, Vce	25 @ 8A, 5V
Vce Saturation (Max) @ Ib, Ic	1.4V @ 800mA, 8A
Frequency - Transition	4MHz
Current - Collector Cutoff (Max)	100A
Mounting Type	Through Hole

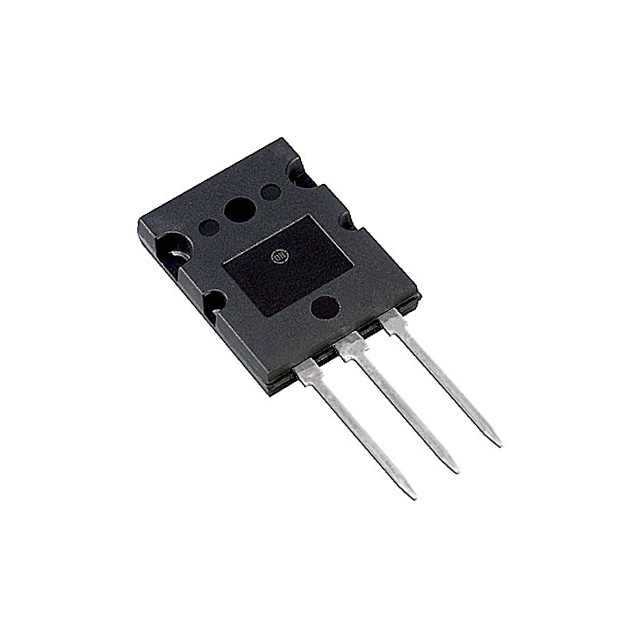

Package / Case	TO-264-3, TO-3BPL
Packaging	Tube
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MJL21194G MJL21194G MJL21194GOS ND MJL21194GOSND MJL21194GOS

MJL21195 Parameters

Technical/Catalog Information	MJL21195
Vendor	ON Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max)	250V
Current - Collector (Ic) (Max)	16A
Power - Max	200W
DC Current Gain (hFE) (Min) @ Ic, Vce	25 @ 8A, 5V
Vce Saturation (Max) @ Ib, Ic	1.4V @ 800mA, 8A
Frequency - Transition	4MHz
Current - Collector Cutoff (Max)	100A
Mounting Type	Through Hole
Package / Case	TO-264-3, TO-3BPL
Packaging	Tube
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MJL21195 MJL21195 MJL21195OS ND MJL21195OSND MJL21195OS

MJL21195 Maximum Ratings

Rating	Symbol	Value	Unit
CollectorEmitter Voltage	V_CEO	250	Vdc
CollectorBase Voltage	V_CBR	400	Vdc
EmitterBase Voltage	V_EBO	5	Vdc
CollectorEmitter Voltage - 1.5 V	V_CEX	400	Vdc
Collector Current - Continuous - Peak (1)	I_C	16 30	Adc
Base Current - Continuous	I_B	5	Adc
Total Power Dissipation @ T_C = 25 Derate Above 25	P_D	200 1.43	Watts W/
Operating and Storage Junction Temperature Range	T_J, T_stg	65 to +150

MJL21195 Typical Application

• Total Harmonic Distortion Characterized
• High DC Current Gain hFE = 25 Min @ IC = 8 Adc
• Excellent Gain Linearity
• High SOA: 2.50 A, 80 V, 1 Second

MJL21195G Parameters

Technical/Catalog Information	MJL21195G
Vendor	ON Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	PNP
Voltage - Collector Emitter Breakdown (Max)	250V
Current - Collector (Ic) (Max)	16A
Power - Max	200W
DC Current Gain (hFE) (Min) @ Ic, Vce	25 @ 8A, 5V
Vce Saturation (Max) @ Ib, Ic	1.4V @ 800mA, 8A
Frequency - Transition	4MHz
Current - Collector Cutoff (Max)	100A
Mounting Type	Through Hole
Package / Case	TO-264-3, TO-3BPL
Packaging	Tube
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MJL21195G MJL21195G MJL21195GOS ND MJL21195GOSND MJL21195GOS
