IXFX62N25, IXFX64N50P, IXFX64N60P

Table of contents:
Info of IXFX62N25
Info of IXFX64N50P
Info of IXFX64N60P

IXFX62N25, IXFX64N50P, IXFX64N60P Selling Leads, Datasheet

MFG:IXYS Category:Discrete Semiconductor Products Package Cooled:IXYS D/C:TO

IXFX62N25, IXFX64N50P, IXFX64N60P Datasheet download

Five Points

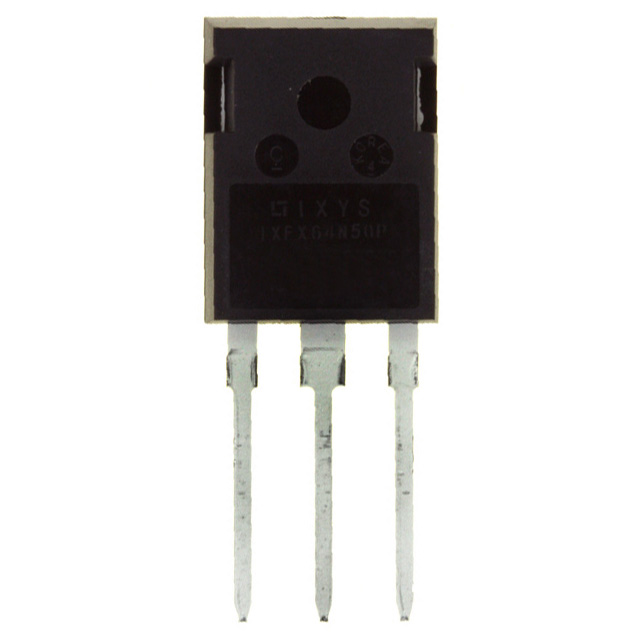

Part Number: IXFX64N50P

Category: Discrete Semiconductor Products

MFG: IXYS

Package Cooled: IXYS

D/C: TO

Description: MOSFET N-CH 600V 64A PLUS247

Price Break

Unit Price

7.51000

Extended Price

450.60

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IXFX62N25 Parameters

Technical/Catalog Information	IXFX62N25
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	250V
Current - Continuous Drain (Id) @ 25° C	62A
Rds On (Max) @ Id, Vgs	35 mOhm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds	6600pF @ 25V
Power - Max	390W
Packaging	Tube
Gate Charge (Qg) @ Vgs	240nC @ 10V
Package / Case	PLUS 247
FET Feature	Standard
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXFX62N25 IXFX62N25

IXFX62N25 Features

• International standard packages
• Low R_{DS (on}) HDMOS^TM process
• Rugged polysilicon gate cell structure
• Unclamped Inductive Switching (UIS) rated
• Low package inductance
- easy to drive and to protect
• Fast intrinsic rectifier

IXFX62N25 Typical Application

• DC-DC converters
• Battery chargers
• Switched-mode and resonant-mode power supplies
• DC choppers
• AC motor control
• Temperature and lighting controls

IXFX64N50P Parameters

Technical/Catalog Information	IXFX64N50P
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25° C	64A
Rds On (Max) @ Id, Vgs	85 mOhm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds	8700pF @ 25V
Power - Max	830W
Packaging	Tube
Gate Charge (Qg) @ Vgs	150nC @ 10V
Package / Case	PLUS 247
FET Feature	Standard
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXFX64N50P IXFX64N50P

IXFX64N60P Parameters

Technical/Catalog Information	IXFX64N60P
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25° C	64A
Rds On (Max) @ Id, Vgs	96 mOhm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds	12000pF @ 25V
Power - Max	1040W
Packaging	Tube
Gate Charge (Qg) @ Vgs	200nC @ 10V
Package / Case	PLUS 247
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXFX64N60P IXFX64N60P
