IXFT32N50, IXFT36N50P, IXFT36N60P

Table of contents:
Info of IXFT32N50
Info of IXFT36N50P
Info of IXFT36N60P

IXFT32N50, IXFT36N50P, IXFT36N60P Selling Leads, Datasheet

MFG:IXYS Category:Discrete Semiconductor Products Package Cooled:09+ D/C:TO

IXFT32N50, IXFT36N50P, IXFT36N60P Datasheet download

Five Points

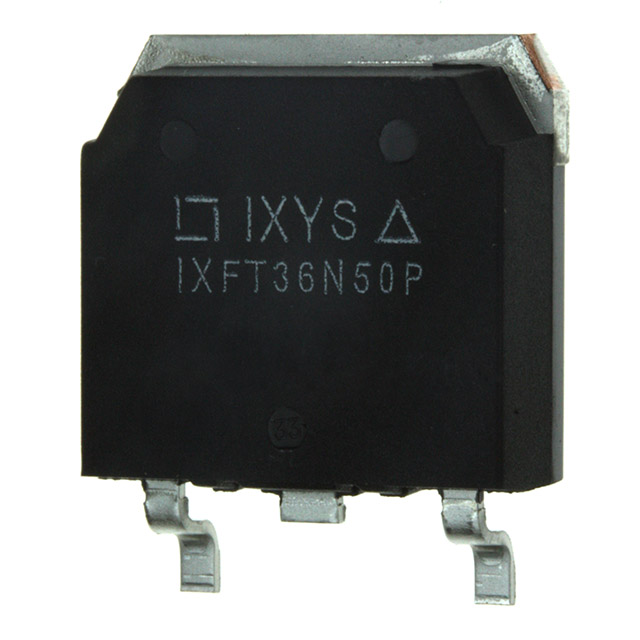

Part Number: IXFT36N50P

Category: Discrete Semiconductor Products

MFG: IXYS

Package Cooled: 09+

D/C: TO

Description: MOSFET N-CH 600V 36A TO-268 D3

Price Break

Unit Price

9.41000

Extended Price

564.60

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IXFT32N50 Parameters

Technical/Catalog Information	IXFT32N50
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25° C	32A
Rds On (Max) @ Id, Vgs	150 mOhm @ 15A, 10V
Input Capacitance (Ciss) @ Vds	5700pF @ 25V
Power - Max	360W
Packaging	Tube
Gate Charge (Qg) @ Vgs	300nC @ 10V
Package / Case	TO-268
FET Feature	Standard
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXFT32N50 IXFT32N50

IXFT32N50 Maximum Ratings

Symbol	Test conditions	Maximum	ratings
V_DSS V_DGR	TJ = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 M	500 500	V V
V_GS V_GSM	Continuous Transient	±20 ±30	V V
I_D25 I_DM I_AR	TC = 25°C TC = 25°C, pulse width limited by TJM TC = 25°C	30N5030 32N5032 30N50120 32N50128 30N5030 32N5032	A A A A A A
E_AS E_AR	TC = 25°C TC = 25°C	1.5 35	J mJ
dv/dt	IS IDM, di/dt 100 A/s, VDD VDSS TJ 150°C, RG = 2	5	V/ns
P_D	TC = 25°C	315	W
T_J T_JM T_stg		-55 ... +150 150 -55 ... +150	°C °C °C
T_L	1.6 mm (0.063 in.) from case for 10 s	300	°C
M_d	Mounting torque TO-247	1.13/10	Nm/lb.in.
Weight		6	g

IXFT32N50 Features

• International standard packages
• Low RDS (on) HDMOSTM process
• Rugged polysilicon gate cell structure
• Unclamped Inductive Switching (UIS) rated
• Low package inductance - easy to drive and to protect
• Fast intrinsic Diode

IXFT32N50 Typical Application

• DC-DC converters
• Battery chargers
• Switched-mode and resonant-mode power supplies
• DC choppers
• AC motor control
• Temperature and lighting controls

IXFT36N50P Parameters

Technical/Catalog Information	IXFT36N50P
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25° C	36A
Rds On (Max) @ Id, Vgs	170 mOhm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds	5500pF @ 25V
Power - Max	540W
Packaging	Tube
Gate Charge (Qg) @ Vgs	93nC @ 10V
Package / Case	TO-268
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXFT36N50P IXFT36N50P

IXFT36N60P Parameters

Technical/Catalog Information	IXFT36N60P
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25° C	36A
Rds On (Max) @ Id, Vgs	190 mOhm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds	5800pF @ 25V
Power - Max	650W
Packaging	Tube
Gate Charge (Qg) @ Vgs	102nC @ 10V
Package / Case	TO-268
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXFT36N60P IXFT36N60P
