IXFN80N50P, IXFN80N50Q2, IXFN90N30

Table of contents:
Info of IXFN80N50P
Info of IXFN80N50Q2
Info of IXFN90N30

IXFN80N50P, IXFN80N50Q2, IXFN90N30 Selling Leads, Datasheet

MFG:IXYS Category:Discrete Semiconductor Products Package Cooled:66A/500V/MOS/1U D/C:N/A

IXFN80N50P, IXFN80N50Q2, IXFN90N30 Datasheet download

Five Points

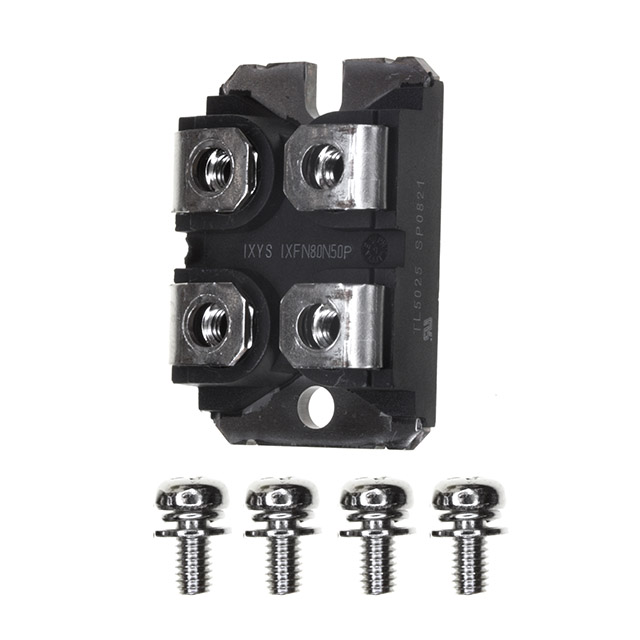

Part Number: IXFN80N50P

Category: Discrete Semiconductor Products

MFG: IXYS

Package Cooled: 66A/500V/MOS/1U

D/C: N/A

Description: MOSFET N-CH 300V 90A SOT-227B

Price Break

1
10
50
100
500
1000

Unit Price

36.33000
30.27500
24.22000
18.04000
16.34850
15.14004

Extended Price

36.33
302.75
1211.00
1804.00
8174.25
15140.04

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IXFN80N50P Parameters

Technical/Catalog Information	IXFN80N50P
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Chassis Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25° C	66A
Rds On (Max) @ Id, Vgs	65 mOhm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds	12700pF @ 25V
Power - Max	700W
Packaging	Tube
Gate Charge (Qg) @ Vgs	195nC @ 10V
Package / Case	SOT-227B miniBLOC
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXFN80N50P IXFN80N50P

IXFN80N50Q2 Parameters

Technical/Catalog Information	IXFN80N50Q2
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Chassis Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25° C	80A
Rds On (Max) @ Id, Vgs	60 mOhm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds	12800pF @ 25V
Power - Max	890W
Packaging	Tube
Gate Charge (Qg) @ Vgs	250nC @ 10V
Package / Case	SOT-227B miniBLOC
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXFN80N50Q2 IXFN80N50Q2

IXFN90N30 Parameters

Technical/Catalog Information	IXFN90N30
Vendor	IXYS
Category	Discrete Semiconductor Products
Mounting Type	Chassis Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	300V
Current - Continuous Drain (Id) @ 25° C	90A
Rds On (Max) @ Id, Vgs	33 mOhm @ 500mA, 10V
Input Capacitance (Ciss) @ Vds	10000pF @ 25V
Power - Max	560W
Packaging	Tube
Gate Charge (Qg) @ Vgs	360nC @ 10V
Package / Case	SOT-227B miniBLOC
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	IXFN90N30 IXFN90N30

IXFN90N30 Maximum Ratings

Symbol	Test Conditions	Maximum Ratings
V_DSS V_DGR	T_J = 25°C to 150°C T_J = 25°C to 150°C; R_GE= 1 M	300 300	V V
V_GS V_GEM	Continuous Transient	±20 ±30	V V
I_D25I_DM I_AR	TC = 25°C TC = 25°C, pulse width limited by TJM TC = 25°C	90 360 90	A A A
E_AR	T_C= 25°C	3	mJ
E_AS	T_C= 25°C	5	J
dv/dt	I_S I_DM, di/dt 100 A/µs, V_DD V_DSS, T_J 150°C, R_G = 2Ω	5	V/ns
P_D	T_C = 25°C	560	W
T_J T_JM T_stg		-55 ... +150 150 -55 ... +150	°C °C °C
TJ	1.6 mm (0.63 in) from case for 10 s	-	°C
V_ISOL	50/60 Hz, RMS t = 1 min I_ISOL 1 mA t = 1 s	2500 3000	V~ V~
M_d	Mounting torque Terminal connection torque	1.5/13 1.5/13	Nm/lb.in. Nm/lb.in.. .
Weight		30	g

IXFN90N30 Features

• International standard package
• miniBLOC, with Aluminium nitride isolation
• Low R_DS _(on) HDMOSTM process
• Rugged polysilicon gate cell structure
• Unclamped Inductive Switching (UIS) rated
• Low package inductance
• Fast intrinsic Rectifier

IXFN90N30 Typical Application

• DC-DC converters
• Battery chargers
• Switched-mode and resonant-mode power supplies
• DC choppers
• Temperature and lighting controls
