IXFK80N50P, IXFK88N30P, IXFK90N20

IXFK80N50P, IXFK88N30P, IXFK90N20 Selling Leads, Datasheet

MFG:IXYS  Category:Discrete Semiconductor Products  Package Cooled:TO-264  D/C:`07+(pb-free)

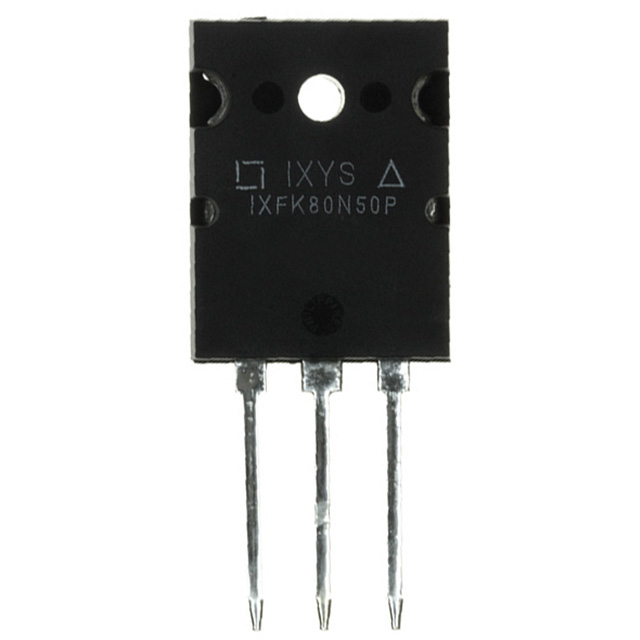

IXFK80N50P Picture

IXFK80N50P, IXFK88N30P, IXFK90N20 Datasheet download

Five Points

Part Number: IXFK80N50P

Category: Discrete Semiconductor Products

MFG: IXYS

Package Cooled: TO-264

D/C: `07+(pb-free)

Description: MOSFET N-CH 200V 90A TO-264AA
