IPB10N03, IPB10N03L, IPB10N03LB

Table of contents:
Info of IPB10N03
Info of IPB10N03L
Info of IPB10N03LB

IPB10N03, IPB10N03L, IPB10N03LB Selling Leads, Datasheet

MFG:Infineon Technologies Category:Discrete Semiconductor Products Package Cooled:TO-263 D/C:09+

IPB10N03, IPB10N03L, IPB10N03LB Datasheet download

Five Points

Part Number: IPB10N03LB

Category: Discrete Semiconductor Products

MFG: Infineon Technologies

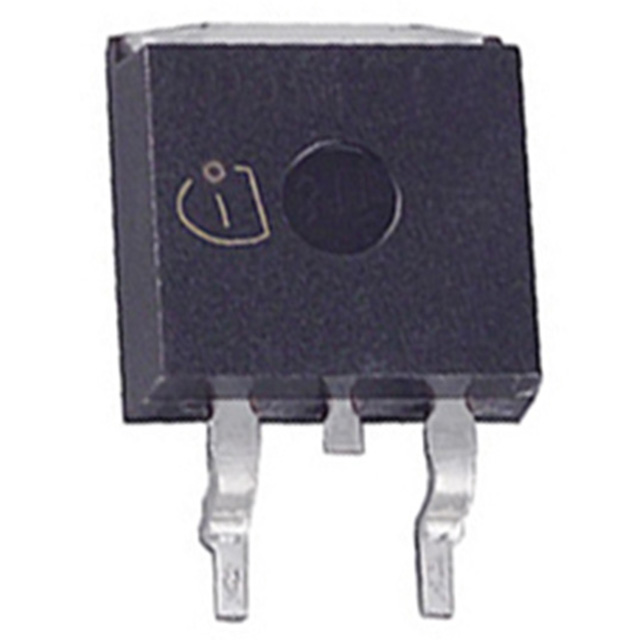

Package Cooled: TO-263

D/C: 09+

Description: MOSFET N-CH 30V 50A D2PAK

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IPB10N03L Maximum Ratings

Continuous drain current¹⁾ T_C=25°C I_D .....................................................73 or 63 A
Pulsed drain current T_C=25°C I_D puls ...............................................................292 A
Avalanche energy, single pulse I_D=30A, V_DD=25V, R_GS=25W E_AS ....................25 mJ
Repetitive avalanche energy, limited by T_jmax 2) E_AR .......................................10 mJ
Reverse diode dv/dt I_S=73A, V_DS=24, di/dt=200A/µs, T_jmax=175°C dv/dt ....6 kV/µs
Gate source voltage V_GS ...................................................................................±20 V
Power dissipation T_C=25°C P_tot .......................................................................107 W
Operating and storage temperature T_j , T_stg .......................................-55... +175 °C
IEC climatic category; DIN IEC 68-1 ...........................................................55/175/56

IPB10N03L Features

· N-Channel
· Logic Level
· Low On-Resistance RDS(on)
· Excellent Gate Charge x RDS(on) product (FOM)
· Superior thermal resistance
· 175°C operating temperature
· Avalanche rated
· dv/dt rated
· Ideal for fast switching buck converters

IPB10N03L Typical Application

· The information herein is given to describe certain components and shall not be considered as warranted characteristics.
· Terms of delivery and rights to technical change reserved.
· We hereby disclaim any and all warranties, including but not limited to warranties of non-infringement, regarding circuits, descriptions and charts stated herein.
· Infineon Technologies is an approved CECC manufacturer.

IPB10N03LB Parameters

Technical/Catalog Information	IPB10N03LB
Vendor	Infineon Technologies
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	50A
Rds On (Max) @ Id, Vgs	9.6 mOhm @ 50A, 10V
Input Capacitance (Ciss) @ Vds	1639pF @ 15V
Power - Max	58W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	13nC @ 5V
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Logic Level Gate
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	IPB10N03LB IPB10N03LB

IPB10N03LB Maximum Ratings

Parameter	Symbol	Conditions	Value	Unit
Continuous drain current	I_D	T_C=25 ²⁾	50	A
Continuous drain current	I_D	T_C=100	41
Pulsed drain current2)	I_D,pulse	TC=25³⁾	200
Avalanche energy, single pulse	E_AS	I_D=50 A, R_GS=25	57	mJ
Reverse diode dv /dt	dv /dt	I_D=50 A, V_DS=20 V, di/dt =200 A/s, T_j,max=175	6	kV/s
	V_GS		±20	V
Power dissipation	P_tot	T_C=25	58	W
Operating and storage temperature	T_j, T_stg		-55 ... 175
IEC climatic category; DIN IEC 68-1			55/175/56

1) J-STD20 and JESD22

IPB10N03LB Features

• Ideal for high-frequency dc/dc converters
• Qualified according to JEDEC1) for target applications
• N-channel - Logic level
• Excellent gate charge x R _DS(on) product (FOM)
• Very low on-resistance R_DS(on)• Superior thermal resistance
• 175 operating temperature
• dv /dt rated
• Pb-free lead plating; RoHS compliant
