IPB04N03LA, IPB04N03LA G, IPB04N03LB G

Table of contents:
Info of IPB04N03LA
Info of IPB04N03LA G
Info of IPB04N03LB G

IPB04N03LA, IPB04N03LA G, IPB04N03LB G Selling Leads, Datasheet

MFG:Infineon Technologies Category:Discrete Semiconductor Products Package Cooled:. D/C:06+

IPB04N03LA, IPB04N03LA G, IPB04N03LB G Datasheet download

Five Points

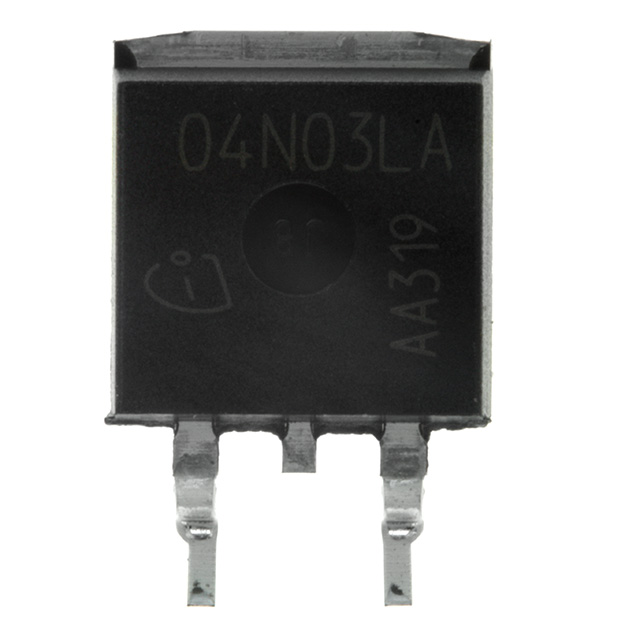

Part Number: IPB04N03LA

Category: Discrete Semiconductor Products

MFG: Infineon Technologies

Package Cooled: .

D/C: 06+

Description: MOSFET N-CH 25V 80A D2PAK

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

IPB04N03LA Parameters

Technical/Catalog Information	IPB04N03LA
Vendor	Infineon Technologies
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25° C	80A
Rds On (Max) @ Id, Vgs	3.9 mOhm @ 55A, 10V
Input Capacitance (Ciss) @ Vds	3877pF @ 15V
Power - Max	107W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	32nC @ 5V
Package / Case	D²Pak, SMD-220, TO-263 (2 leads + tab)
FET Feature	Logic Level Gate
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	IPB04N03LA IPB04N03LA IPB04N03LAINTR ND IPB04N03LAINTRND IPB04N03LAINTR

IPB04N03LA Maximum Ratings

Parameter	Symbol	Conditions	Value	Unit
Continuous drain current	I_D	T_C=25 °C	80	A
Continuous drain current	I_D	T_C=100 °C	80	A
Pulsed drain current	I_D,pulse	T_C=25 °C	385	A
Avalanche energy, single pulse	E_AS	I_D=77 A, R_GS=25 Ω	290	mJ
Reverse diode dv /dt	dv /dt	I_D=80 A, V_DS=20 V, di /dt =200 A/µs, T_j,max=175 °C	6	kV/µs
Gate source voltage	V_GS		±20	V
Power dissipation	P_tot	T_C=25 °C	107	W
Operating and storage temperature	T_j, T_stg		-55 ... 175	°C
IEC climatic category; DIN IEC 68-1			55/175/56

IPB04N03LA Features

• Ideal for high-frequency dc/dc converters
• N-channel
• Logic level
• Excellent gate charge x R_DS(on) product (FOM)
• Very low on-resistance R_DS(on)
• Superior thermal resistance
• 175 °C operating temperature
• dv /dt rated
