FPF2148, FPF2163, FPF2164

Table of contents:
Info of FPF2148
Info of FPF2163
Info of FPF2164

FPF2148, FPF2163, FPF2164 Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Integrated Circuits (ICs) Package Cooled:MicroFET D/C:2010+

FPF2148, FPF2163, FPF2164 Datasheet download

Five Points

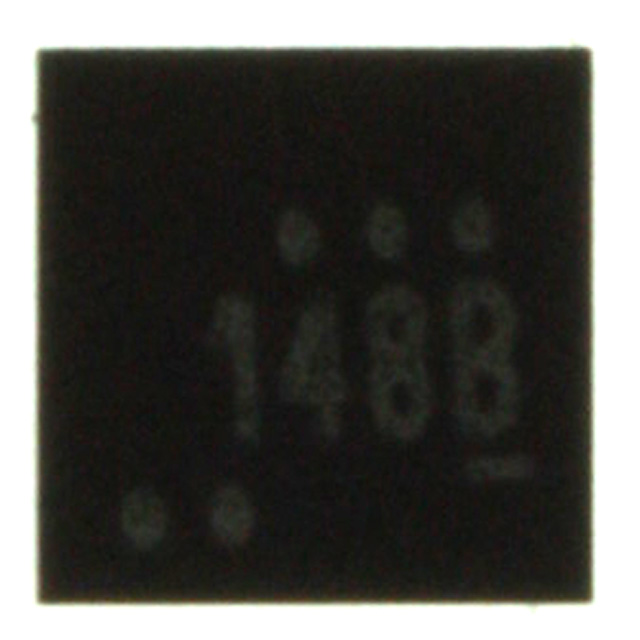

Part Number: FPF2148

Category: Integrated Circuits (ICs)

MFG: Fairchild Semiconductor

Package Cooled: MicroFET

D/C: 2010+

Description: IC LOAD SWITCH ADJ CURR 6-MLP

Price Break

3000
6000
12000

Unit Price

.42900
.42100
.41300

Extended Price

1287.00
2526.00
4956.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FPF2148 Parameters

Technical/Catalog Information	FPF2148
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Type	High Side Switch
Number of Outputs	1
Voltage - Input	1.8 ~ 5.5 V
Package / Case	MicroFET-6
Packaging	Tape & Reel (TR)
Current Limit	200mA
Internal Switch(s)	Yes
Operating Temperature	-40°C ~ 85°C
Rds (On)	160 mOhm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FPF2148 FPF2148 FPF2148TR ND FPF2148TRND FPF2148TR

FPF2148 General Description

The FPF2148 is a load switch which provides full protection tosystems and loads which may encounter large currentconditions. These devices contain a 0.15? current-limitedP-channel MOSFET which can operate over an input voltagerange of 1.8-5.5V. Switch control is by a logic input (ONB)capable of interfacing directly with low voltage control signals.The part contains thermal shutdown protection which shuts offthe switch to prevent damage to the part when a continuousover-current condition causes excessive heating.

When the switch current reaches the current limit, the partoperates in a constant-current mode to prohibit excessivecurrents from causing damage. For the FPF2148, a current limitcondition will immediately pull the fault signal pin low and thepart will remain in the constant-current mode until the switchcurrent falls below the current limit. The minimum current limit is200mA.

The part is available in a space-saving 6 pin 2X2 MLP package.

FPF2148 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FPF2148	Full Production	Green	$0.72	MicroFET	6	TAPE REEL		Line 1: &E&Y (Binary Calendar Year Coding) Line 2: &O148&C Line 3: &.&O&V

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FPF2148 is available. Click here for more information .

FPF2163 Parameters

Technical/Catalog Information	FPF2163
Vendor	Fairchild Semiconductor (VA)
Category	Integrated Circuits (ICs)
Type	High Side Switch
Number of Outputs	1
Voltage - Input	1.8 ~ 5.5 V
Package / Case	6-MLP
Packaging	Cut Tape (CT)
Current Limit	Adjustable
Internal Switch(s)	Yes
Operating Temperature	-40°C ~ 85°C
Rds (On)	160 mOhm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FPF2163 FPF2163 FPF2163CT ND FPF2163CTND FPF2163CT

FPF2163 General Description

The FPF2163, FPF2164, and FPF2165 is a series of loadswitches which provides full protection to systems and loadswhich may encounter large current conditions. These devicescontain a 0.11Ω current-limited P-channel MOSFET which canoperate over an input voltage range of 1.8-5.5V. Internally,current is prevented from flowing when the MOSFET is off andthe output voltage is higher than the input voltage. Switchcontrol is by a logic input (ON) capable of interfacing directlywith low voltage control signals. Each part contains thermalshutdown protection which shuts off the switch to preventdamage to the part when a continuous over-current conditioncauses excessive heating.

When the switch current reaches the current limit, the partsoperate in a constant-current mode to prohibit excessivecurrents from causing damage. For the FPF2163 and FPF2164,if the constant current condition still persists after 30ms, theseparts will shut off the switch and pull the fault signal pin (FLAGB)low. The FPF2163 has an auto-restart feature which will turn theswitch on again after 450ms if the ON pin is still active. TheFPF2164 does not have this auto-restart feature so the switchwill remain off until the ON pin is cycled. The FPF2165 will notturn off after a current limit fault, but will rather remain in theconstant current mode indefinitely. The minimum current limit is150mA.

These parts are available in a space-saving 6 pin 2X2 MLPpackage.

FPF2163 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FPF2163	Full Production	Green	$0.78	MicroFET	6	TAPE REEL		Line 1: &E&Y (Binary Calendar Year Coding) Line 2: &O163&C Line 3: &.&O&V

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FPF2163 is available. Click here for more information .

FPF2164 Parameters

Technical/Catalog Information	FPF2164
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Type	High Side Switch
Number of Outputs	1
Voltage - Input	1.8 ~ 5.5 V
Package / Case	6-MLP
Packaging	Tape & Reel (TR)
Current Limit	Adjustable
Internal Switch(s)	Yes
Operating Temperature	-40°C ~ 85°C
Rds (On)	160 mOhm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FPF2164 FPF2164 FPF2164TR ND FPF2164TRND FPF2164TR

FPF2164 General Description

These parts are available in a space-saving 6 pin 2X2 MLPpackage.

FPF2164 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FPF2164	Full Production	Green	$0.78	MicroFET	6	TAPE REEL		Line 1: &E&Y (Binary Calendar Year Coding) Line 2: &O164&C Line 3: &.&O&V

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FPF2164 is available. Click here for more information .
