FPF1006, FPF1006_F079, FPF1007 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Fairchild Semiconductor (VA)
Package Cooled: 2520
D/C: 06+NOPB

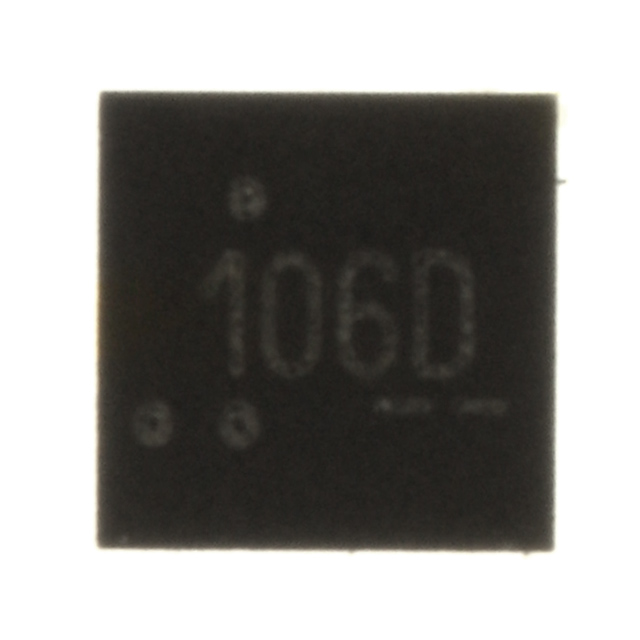

Description: IC LOAD SWITCH P-CH 2X2 MICROFET
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FPF1006
File Size: 368640 KB
Manufacturer: FAIRCHILD
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FPF1005
File Size: 368640 KB
Manufacturer: FAIRCHILD
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FPF1005
File Size: 368640 KB
Manufacturer: FAIRCHILD
Download : Click here to Download
| Technical/Catalog Information | FPF1006 |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Type | High Side Switch |
| Number of Outputs | 1 |
| Voltage - Input | 1.2 ~ 5.5 V |
| Package / Case | MicroFET-6 |
| Packaging | Tape & Reel (TR) |
| Current Limit | 1.5A |
| Internal Switch(s) | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Rds (On) | 70 mOhm |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FPF1006 FPF1006 FPF1006TR ND FPF1006TRND FPF1006TR |
The FPF1005 & FPF1006 are low RDS P-Channel MOSFET load switches with CMOS controlled turn-on targeting small package load switch applications. The input voltage range operates from 1.2V to 5.5V. Switch control is by a logic input (ON) capable of interfacing directly with low voltage control signals. Optional on-chip load resistor is added for output quick discharge when switch is turned off.
Both FPF1005 & FPF1006 are available in a small 2X2 MLP- 6 pin plastic package.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FPF1006 | Full Production | Green | $0.60 | MicroFET | 6 | TAPE REEL | Line 1: &E&Y (Binary Calendar Year Coding) Line 2: &O106&C Line 3: &.&O&V |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FPF1006 is available. Click here for more information . |
| Technical/Catalog Information | FPF1007 |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Integrated Circuits (ICs) |
| Type | High Side Switch |
| Number of Outputs | 1 |
| Voltage - Input | 1.2 ~ 5.5 V |
| Package / Case | MicroFET-6 |
| Packaging | Cut Tape (CT) |
| Current Limit | 1.5A |
| Internal Switch(s) | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Rds (On) | 40 mOhm |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FPF1007 FPF1007 FPF1007CT ND FPF1007CTND FPF1007CT |
The FPF1007/8/9 are low RDS P-Channel MOSFET loadswitches offered in a selection of 10µs, 80µs, and 1ms slew rateturn-on options for transient/in-rush current control. To supporttrends in mobile application requirements the minimumoperating input voltage has been reduced down to 1.2V, theinput current leakage has been minimized to extend battery life,and the ESD-protection has been designed to withstand aminimum of 8KV (HBM) and 2KV(CDM).
The switch is controlled by an active-high logic input (ON pin)allowing it to interface directly with a low voltage control signal.An internal ON pin pull down resistor protects against anunintentional device turn-on while in the initial state. An On-chippull-down resistor on the output is enabled when the switch isturned-off and provides a quick and robust discharge of theoutput load.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FPF1007 | Full Production | Green | $0.57 | MicroFET | 6 | TAPE REEL | Line 1: &E&Y (Binary Calendar Year Coding) Line 2: &O007&C Line 3: &.&O&V |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FPF1007 is available. Click here for more information . |
