MFG:Fairchild Semiconductor (VA) Category:Integrated Circuits (ICs) Package Cooled:FAIRCHILD D/C:2006
FPF2005_NL, FPF2006_NL, FPF2024 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Fairchild Semiconductor (VA)
Package Cooled: FAIRCHILD
D/C: 2006
Description: IC LOAD SWITCH 100MA 6WLCSP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FPF1005
File Size: 368640 KB
Manufacturer: FAIRCHILD
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FPF1005
File Size: 368640 KB
Manufacturer: FAIRCHILD
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FPF1005
File Size: 368640 KB
Manufacturer: FAIRCHILD
Download : Click here to Download
| Technical/Catalog Information | FPF2024 |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Integrated Circuits (ICs) |
| Type | High Side Switch |
| Number of Outputs | 1 |
| Voltage - Input | 1.6 ~ 5.5 V |
| Package / Case | 6-WLCSP |
| Packaging | Digi-Reel? |
| Current Limit | 150mA |
| Internal Switch(s) | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Rds (On) | 315 mOhm |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FPF2024 FPF2024 FPF2024DKR ND FPF2024DKRND FPF2024DKR |
The FPF2024/5/6/7 are low RDS(ON) P-Channel MOSFET loadswitches with 150mA typical current limit value targeting smallpackage load switch applications. The extended input voltagerange spans from 1.6V to 5.5V to fulfill today's Ultra PortableDevice's supply requirements. Switch control is by a logic input(ON) capable of interfacing directly with a low voltage controlsignal.
The FPF2024/5/6/7 respond to an output overload condition bygoing into constant current mode where the output current isregulated by the load switch. If the overcurrent conditionpersists beyond the 10ms Blanking Time, FPF2024 andFPF2025 pull the fault signal pin (FLAGB) low and shut-off theswitch. An Auto-Restart feature turns FPF2024 and FPF2025on again after 70ms if the ON pin is still active. The FPF2026has a Latch-Off feature which shuts off the switch off after theexpiration of the 10ms Blanking Time and keeps it off until theON pin is toggled. The FPF2027 responds to an overloadcondition by immediately pulling the fault signal pin low and theswitch remains in constant current mode until the outputoverload condition is removed. FPF2027 has a Startup Blankingfeature which prevents startup transient overcurrent conditionsfrom triggering the fault signal pin for 10ms after initial turn onvia the ON pin.

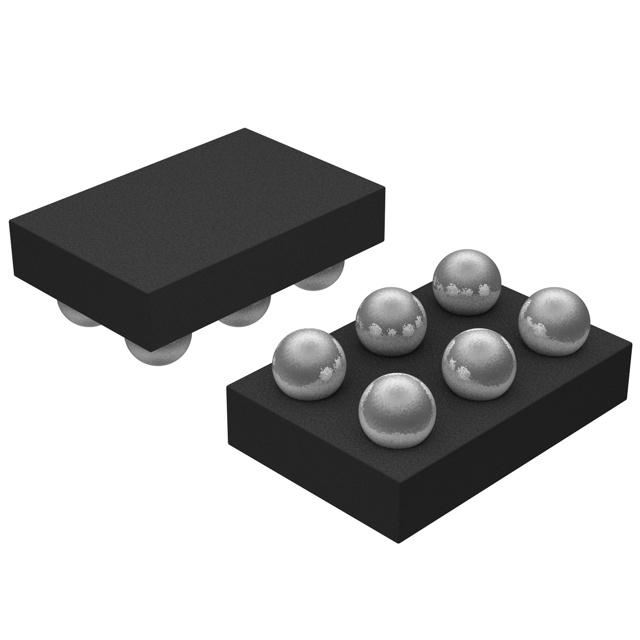

These parts are available in a space-saving 6 ball advanced.Pb-Free 1.0x1.5 mm2 CSP package.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FPF2024 | Full Production | Green | $0.70 | WL-CSP | 6 | TAPE REEL | Line 1: S2&K Line 2: &.&2&Z |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FPF2024 is available. Click here for more information . |
