MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:2000PCS D/C:original&New
FGH60N60UFDTU, FGH75N60SF, FGH75N60UF Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor
Package Cooled: 2000PCS
D/C: original&New

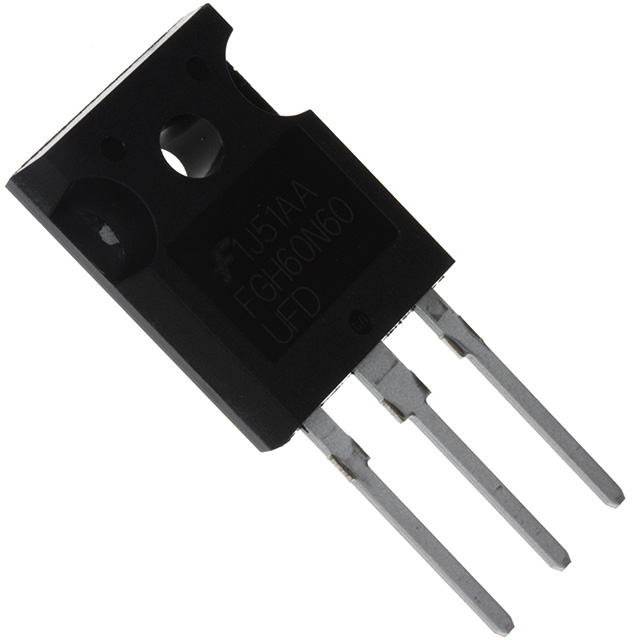

Description: IGBT 120A 600V FIELD STOP TO-247
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FGH20N6S2
File Size: 187657 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FGH20N6S2
File Size: 187657 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FGH20N6S2
File Size: 187657 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | FGH60N60UFDTU |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Input Type | Standard |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Current - Collector (Ic) (Max) | 120A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 60A |
| Power - Max | 298W |
| Mounting Type | Through Hole |
| Package / Case | TO-247 |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FGH60N60UFDTU FGH60N60UFDTU |
Using Novel Field Stop IGBT Technology, Fairchild?s new sesriesof Field Stop IGBTs offer the optimum performance forInduction Heating, UPS, SMPS and PFC applications wherelow conduction and switching losses are essential.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Packing description | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|---|
| FGH75N60SFTU | Full Production | $9.52 | TO-247 | 3 | Y | RAIL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &3 (3-Digit Date Code) &K Line 2: FGH75N60 Line 4: SF |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FGH75N60SF is available. Click here for more information . |
Using Novel Field Stop IGBT Technology, Fairchild?s newseries of Field Stop IGBTs offer the optimum performance forInduction Heating, UPS, SMPS and PFC applications where lowconduction and switching losses are essential.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FGH75N60UFTU | Full Production | RoHS Compliant | $9.20 | TO-247 | 3 | RAIL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &3 (3-Digit Date Code) &K Line 2: FGH75N60 Line 3: UF |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FGH75N60UF is available. Click here for more information . |
