FDS6575, FDS6575_40, FDS6575S

Table of contents:
Info of FDS6575
Info of FDS6575_40
Info of FDS6575S

FDS6575, FDS6575_40, FDS6575S Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:SOP-8 D/C:09+

FDS6575, FDS6575_40, FDS6575S Datasheet download

Five Points

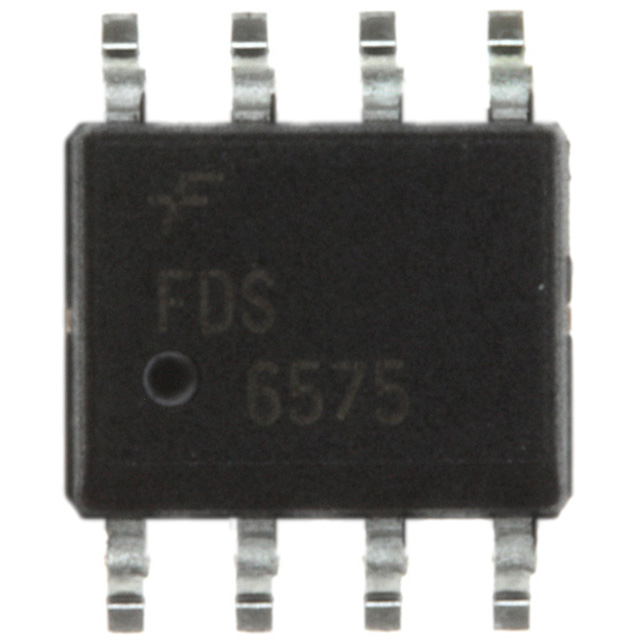

Part Number: FDS6575

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: SOP-8

D/C: 09+

Description: MOSFET P-CH 20V 10A SO-8

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDS6575 Parameters

Technical/Catalog Information	FDS6575
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	10A
Rds On (Max) @ Id, Vgs	13 mOhm @ 10A, 4.5V
Input Capacitance (Ciss) @ Vds	4951pF @ 10V
Power - Max	1.2W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	74nC @ 4.5V
Package / Case	SO-8
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDS6575 FDS6575 FDS6575TR ND FDS6575TRND FDS6575TR

FDS6575 General Description

This P-Channel Logic Level MOSFET is produced using Fairchild Semiconductor's advanced PowerTrench process that has been especially tailored to minimize the on-state resistance and yet maintain low gate charge for superior switching performance.

These devices are well suited for notebook computer applications: load switching and power management, battery charging circuits, and DC/DC conversion.

FDS6575 Maximum Ratings

Symbol	Parameter	FDS8433A	Units
V_DSS	Drain-Source Voltage	-30	V
V_GSS	Gate-Source Voltage	±8	V
I_D	Drain Current - Continuous (Note 1a) - Pulsed	-10	A
I_D	Drain Current - Continuous (Note 1a) - Pulsed	-50	A
P_D	Power Dissipation for Single Operation (Note 1a) (Note 1b) (Note 1c)	2.5	W
		1.2
		1
T_J, T_stg	Operating and Storage Junction Temperature Range	-55 to +150	°C

FDS6575 Features

-10 A, -20 V. R_DS(ON) = 0.013 W @ VGS = -4.5 V,
R_DS(ON) = 0.017 W @ VGS = -2.5 V.
Low gate charge (50nC typical).
High performance trench technology for extremely low R_DS(ON)High power and current handling capability.

FDS6575 Connection Diagram
