FDFS2P753AZ, FDFS2P753AZ-NL, FDFS2P753Z

Table of contents:
Info of FDFS2P753AZ
Info of FDFS2P753AZ-NL
Info of FDFS2P753Z

FDFS2P753AZ, FDFS2P753AZ-NL, FDFS2P753Z Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:SOP D/C:08.09+

FDFS2P753AZ, FDFS2P753AZ-NL, FDFS2P753Z Datasheet download

Five Points

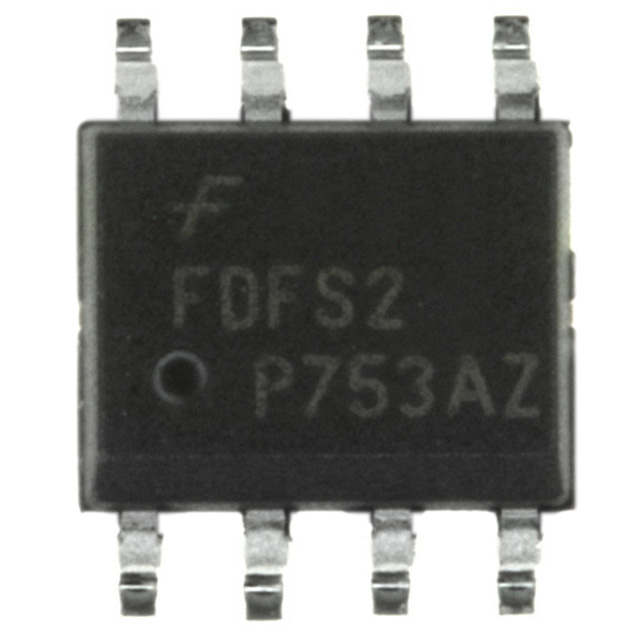

Part Number: FDFS2P753AZ

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: SOP

D/C: 08.09+

Description: MOSFET P-CHAN 30V 3A 8-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDFS2P753AZ Parameters

Technical/Catalog Information	FDFS2P753AZ
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	3A
Rds On (Max) @ Id, Vgs	115 mOhm @ 3A, 10V
Input Capacitance (Ciss) @ Vds	455pF @ 15V
Power - Max	1.6W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	11nC @ 10V
Package / Case	SO-8
FET Feature	Diode (Isolated)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDFS2P753AZ FDFS2P753AZ FDFS2P753AZDKR ND FDFS2P753AZDKRND FDFS2P753AZDKR

FDFS2P753Z Parameters

Technical/Catalog Information	FDFS2P753Z
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	3A
Rds On (Max) @ Id, Vgs	115 mOhm @ 3A, 10V
Input Capacitance (Ciss) @ Vds	455pF @ 10V
Power - Max	1.6W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	9.3nC @ 10V
Package / Case	SO-8
FET Feature	Diode (Isolated)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDFS2P753Z FDFS2P753Z FDFS2P753ZTR ND FDFS2P753ZTRND FDFS2P753ZTR
