FDD7030BL, FDD8444, FDD8445

Table of contents:
Info of FDD7030BL
Info of FDD8444
Info of FDD8445

FDD7030BL, FDD8444, FDD8445 Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:. D/C:06+

FDD7030BL, FDD8444, FDD8445 Datasheet download

Five Points

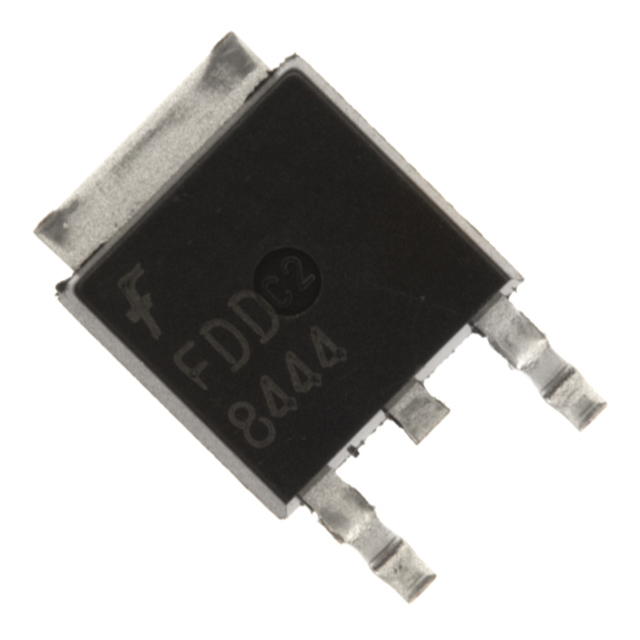

Part Number: FDD8444

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: .

D/C: 06+

Description: MOSFET N-CH 40V DPAK

Price Break

2500

Unit Price

.39910

Extended Price

997.75

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDD7030BL Parameters

Technical/Catalog Information	FDD7030BL
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25° C	14A
Rds On (Max) @ Id, Vgs	9.5 mOhm @ 14A, 10V
Input Capacitance (Ciss) @ Vds	1425pF @ 15V
Power - Max	1.3W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	20nC @ 5V
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDD7030BL FDD7030BL

FDD7030BL General Description

This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low RDS( ON) , fast switching speed and extremely low RDS(ON) in a small package.

FDD7030BL Maximum Ratings

Symbol	Parameter		Ratings	Units
V_DSSV_GSS	Drain-Source Voltage Gate-Source Voltage		30 ±20 56 14 100 60 2.8 1.3 55 to +175	V V
I_D	Continuous Drain Current @TC=25°C @TA=25°C Pulsed	(Note 3) (Note 1a) (Note 1a)		A
P_D	Power Dissipation @TC=25°C @TA=25°C @TA=25°C	(Note 3) (Note 1a) (Note 1b)		W
T_J, T_STG	Operating and Storage Temperature Range			°C

FDD7030BL Features

· 56 A, 30 V RDS(ON) = 9.5 mW @ VGS = 10 V RDS(ON) = 13 mW @ VGS = 4.5 V
· Low gate charge
· Fast Switching
· High performance trench technology for extremely low RDS(ON)

FDD7030BL Typical Application

· DC/DC converter
· Motor Drives

FDD8444 Parameters

Technical/Catalog Information	FDD8444
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25° C	145A
Rds On (Max) @ Id, Vgs	5.2 mOhm @ 50A, 10V
Input Capacitance (Ciss) @ Vds	6195pF @ 25V
Power - Max	153W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	116nC @ 10V
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDD8444 FDD8444 FDD8444TR ND FDD8444TRND FDD8444TR

FDD8445 Parameters

Technical/Catalog Information	FDD8445
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25° C	70A
Rds On (Max) @ Id, Vgs	8.7 mOhm @ 50A, 10V
Input Capacitance (Ciss) @ Vds	4050pF @ 25V
Power - Max	79W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	59nC @ 10V
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Logic Level Gate
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDD8445 FDD8445 FDD8445TR ND FDD8445TRND FDD8445TR
