FDD6782A, FDD6796, FDD6796A

Table of contents:
Info of FDD6782A
Info of FDD6796
Info of FDD6796A

FDD6782A, FDD6796, FDD6796A Selling Leads, Datasheet

MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:TO-252(DPAK) D/C:2010+

FDD6782A, FDD6796, FDD6796A Datasheet download

Five Points

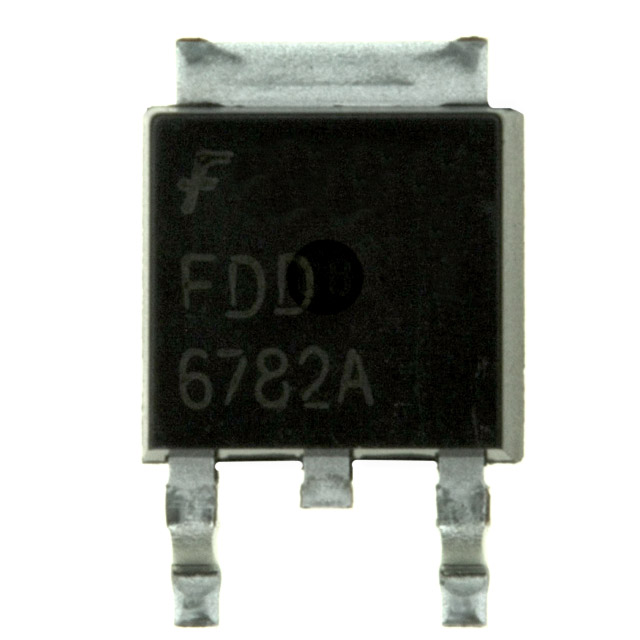

Part Number: FDD6782A

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor (VA)

Package Cooled: TO-252(DPAK)

D/C: 2010+

Description: MOSFET N-CH 25V 20A DPAK

Price Break

2500
5000
10000
25000
50000

Unit Price

.34450
.33788
.33125
.32463
.31800

Extended Price

861.25
1689.40
3312.50
8115.75
15900.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDD6782A Parameters

Technical/Catalog Information	FDD6782A
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25° C	20A
Rds On (Max) @ Id, Vgs	10.5 mOhm @ 14.9A, 10V
Input Capacitance (Ciss) @ Vds	1065pF @ 13V
Power - Max	3.7W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	27nC @ 10V
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDD6782A FDD6782A FDD6782ATR ND FDD6782ATRND FDD6782ATR

FDD6796 Parameters

Technical/Catalog Information	FDD6796
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25° C	20A
Rds On (Max) @ Id, Vgs	5.7 mOhm @ 20A, 10V
Input Capacitance (Ciss) @ Vds	2315pF @ 13V
Power - Max	3.7W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	41nC @ 10V
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDD6796 FDD6796 FDD6796TR ND FDD6796TRND FDD6796TR

FDD6796 General Description

This N-Channel MOSFET has been designed specificallyimprove the overall efficiency of DC/DC converters using eithersynchronous or conventional switching PWM controllers. It hasbeen optimized for low gate charge, low r_DS(on) and fastswitching speed.

FDD6796 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FDD6796	Full Production	RoHS Compliant	$0.66	TO-252(DPAK)	2	TAPE REEL		Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &3 (3-Digit Date Code) &K Line 2: FDD Line 3: 6796

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FDD6796 is available. Click here for more information .

FDD6796A Parameters

Technical/Catalog Information	FDD6796A
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25° C	20A
Rds On (Max) @ Id, Vgs	5.7 mOhm @ 20A, 10V
Input Capacitance (Ciss) @ Vds	1780pF @ 13V
Power - Max	3.7W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	34nC @ 10V
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Logic Level Gate
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDD6796A FDD6796A FDD6796ADKR ND FDD6796ADKRND FDD6796ADKR

FDD6796A General Description

This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low r_DS(on) and fast switching speed.

FDD6796A Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FDD6796A	Full Production	RoHS Compliant	$0.81	TO-252(DPAK)	2	TAPE REEL		Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &3 (3-Digit Date Code) &K Line 2: FDD Line 3: 6796A

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FDD6796A is available. Click here for more information .
