FDD6770A, FDD6776A, FDD6778A

Table of contents:
Info of FDD6770A
Info of FDD6776A
Info of FDD6778A

FDD6770A, FDD6776A, FDD6778A Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:TO-252(DPAK) D/C:2010+

FDD6770A, FDD6776A, FDD6778A Datasheet download

Five Points

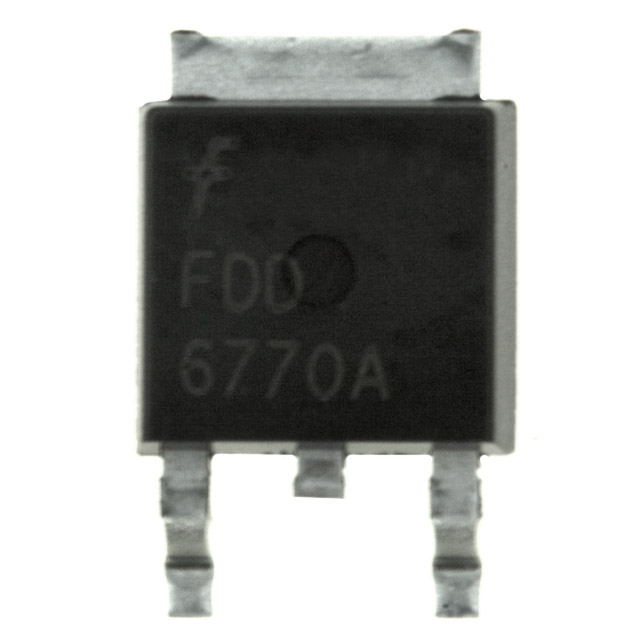

Part Number: FDD6770A

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: TO-252(DPAK)

D/C: 2010+

Description: MOSFET N-CH 25V 12A DPAK

Price Break

2500
5000
10000
25000
50000

Unit Price

.48100
.47175
.46250
.45325
.44400

Extended Price

1202.50
2358.75
4625.00
11331.25
22200.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDD6770A Parameters

Technical/Catalog Information	FDD6770A
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25° C	24A
Rds On (Max) @ Id, Vgs	4 mOhm @ 24A, 10V
Input Capacitance (Ciss) @ Vds	2405pF @ 13V
Power - Max	3.7W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	47nC @ 10V
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDD6770A FDD6770A FDD6770ATR ND FDD6770ATRND FDD6770ATR

FDD6776A Parameters

Technical/Catalog Information	FDD6776A
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25° C	17.7A
Rds On (Max) @ Id, Vgs	7.5 mOhm @ 17.7A, 10V
Input Capacitance (Ciss) @ Vds	1490pF @ 13V
Power - Max	3.7W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	29nC @ 10V
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Logic Level Gate
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDD6776A FDD6776A FDD6776ADKR ND FDD6776ADKRND FDD6776ADKR

FDD6778A Parameters

Technical/Catalog Information	FDD6778A
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25° C	12A
Rds On (Max) @ Id, Vgs	14 mOhm @ 10A, 10V
Input Capacitance (Ciss) @ Vds	870pF @ 13V
Power - Max	3.7W
Packaging	Tape & Reel (TR)
Gate Charge (Qg) @ Vgs	17nC @ 10V
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDD6778A FDD6778A FDD6778ATR ND FDD6778ATRND FDD6778ATR
