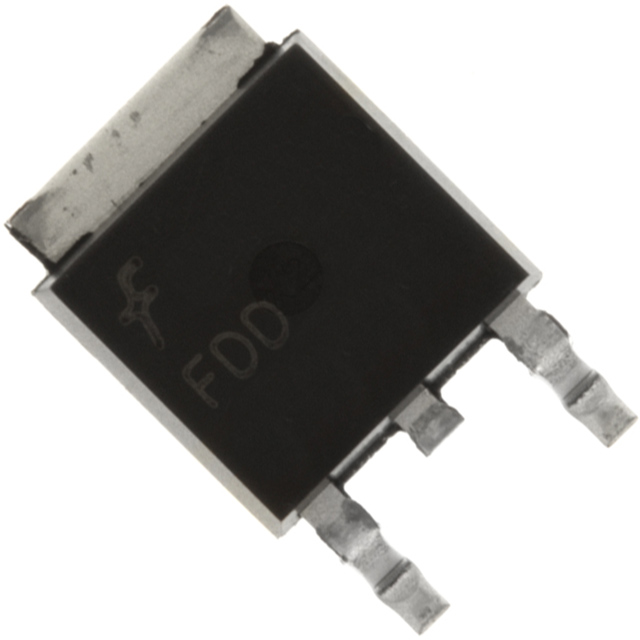

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:TO-252 D/C:08+
FDD6635, FDD6637, FDD6644 Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor
Package Cooled: TO-252
D/C: 08+
Description: MOSFET P-CH 35V DPAK
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FDD6635
File Size: 155190 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDD03-05D
File Size: 457928 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDD6644
File Size: 86202 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | FDD6635 |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 35V |
| Current - Continuous Drain (Id) @ 25° C | 15A |
| Rds On (Max) @ Id, Vgs | 10 mOhm @ 15A, 10V |
| Input Capacitance (Ciss) @ Vds | 1400pF @ 20V |
| Power - Max | 1.6W |
| Packaging | Digi-Reel? |
| Gate Charge (Qg) @ Vgs | 36nC @ 10V |
| Package / Case | DPak, SC-63, TO-252 (2 leads+tab) |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDD6635 FDD6635 FDD6635DKR ND FDD6635DKRND FDD6635DKR |
This N-Channel MOSFET has been produced using Fairchild Semiconductor's proprietary PowerTrench technology to deliver low Rdson and optimized Bvdss capability to offer superior performance benefit in the applications.
| Symbol | Parameter | Ratings | Units |
| VDSS | Drain-Source Voltage | 35 | V |
| VDS(Avalanche) | Drain-Source Avalanche Voltage (maximum) (Note 4) | 40 | V |
| VGSS | Gate-Source Voltage | ±20 | V |
| ID | Continuous Drain Current @TC=25°C (Note 3) @TA=25°C (Note 1a) Pulsed (Note 1a) |
59 | A |
| 15 | |||
| 100 | |||
| PD | Power Dissipation @TC=25°C (Note 3) @TA=25°C (Note 1a) @TA=25°C (Note 1b) |
55 | W |
| 3.8 | |||
| 1.6 | |||
| TJ, TSTG | Operating and Storage Junction Temperature Range | 55 to +150 | °C |
| Technical/Catalog Information | FDD6637 |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | P-Channel |
| Drain to Source Voltage (Vdss) | 35V |
| Current - Continuous Drain (Id) @ 25° C | 13A |
| Rds On (Max) @ Id, Vgs | 11.6 mOhm @ 14A, 10V |
| Input Capacitance (Ciss) @ Vds | 2370pF @ 20V |
| Power - Max | 1.3W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 63nC @ 10V |
| Package / Case | DPak, SC-63, TO-252 (2 leads+tab) |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDD6637 FDD6637 FDD6637TR ND FDD6637TRND FDD6637TR |
This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for low gate charge, low RDS(ON) and fast switching speed.
| Symbol | Parameter | Ratings | Units |
| VDSS | Drain-Source Voltage | 30 | V |
| VGSS | Gate-Source Voltage | ±20 | V |
| ID |
Drain Current Continuous (Note 3) Pulsed (Note 1a) |
67 | A |
| 100 | |||
| PD | Power Dissipation for Single Operation (Note 1) (Note 1a) (Note 1b) |
68 | W |
| 3.8 | |||
| 1.6 | |||
| TJ, TSTG | Operating and Storage Junction Temperature Range | 55 to +175 | °C |
