MFG:Texas Instruments (VA) Category:Integrated Circuits (ICs) Package Cooled:08+ D/C:521
DCV012415DBP-U, DCV012415DP-U/700, DCV012415DP-U/DBU Datasheet download
Category: Integrated Circuits (ICs)
MFG: Texas Instruments (VA)
Package Cooled: 08+
D/C: 521

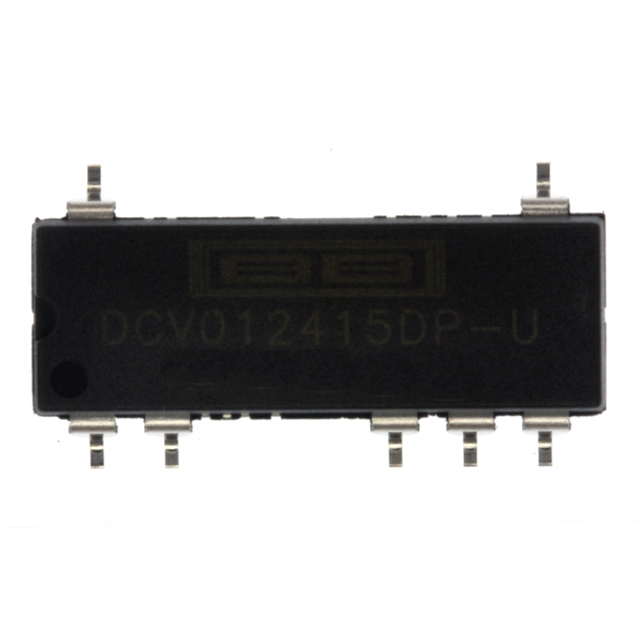

Description: IC 1W ISO MINI DC/DC 14-SOP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: DCV01
File Size: 125441 KB
Manufacturer: BURR-BROWN [Burr-Brown Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: DCV012415DP-U/700
File Size: 125441 KB
Manufacturer: BURR-BROWN [Burr-Brown Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: DCV01
File Size: 125441 KB
Manufacturer: BURR-BROWN [Burr-Brown Corporation]
Download : Click here to Download
| Technical/Catalog Information | DCV012415DP-U/700 |
| Vendor | Texas Instruments (VA) |
| Category | Integrated Circuits (ICs) |
| Type | Isolated |
| Number of Outputs | 2 |
| Voltage - Input | 21.6 ~ 26.4 V |
| Voltage - Output | ±15V, -14.25 ~ -15.75 V |
| Current - Output | 33mA |
| Power - Output | 1W |
| Package / Case | 14-SOP (6.6mm Width, 7 Leads) |
| Packaging | Digi-Reel? |
| Internal Switch(s) | No |
| Synchronous | Yes |
| Rds (On) | - |
| Operating Temperature | -40°C ~ 85°C |
| Frequency - Switching | 800kHz |
| Drawing Number | 296; 4202490; DUA; 7 |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | DCV012415DP U 700 DCV012415DPU700 DCV012415DP UDKR ND DCV012415DPUDKRND DCV012415DP-UDKR |
