DCV010505

Features: ·UP TO 85% EFFICIENCY·THERMAL PROTECTION·DEVICE-TO-DEVICE SYNCHRONIZATION·SHORT-CIRCUIT PROTECTION·EN55022 CLASS B EMC PERFORMANCE·UL1950 RECOGNIZED COMPONENT·JEDEC PDIP-14 AND GULL-WING PACKAGESApplication·INDUSTRIAL CONTROL AND INSTRUMENTATION·POINT-OF-USE POWER CONVERSION·GROUND LOOP ...

product image

DCV010505 Picture
See larger image
SeekIC No. : 004324512 Detail

DCV010505: Features: ·UP TO 85% EFFICIENCY·THERMAL PROTECTION·DEVICE-TO-DEVICE SYNCHRONIZATION·SHORT-CIRCUIT PROTECTION·EN55022 CLASS B EMC PERFORMANCE·UL1950 RECOGNIZED COMPONENT·JEDEC PDIP-14 AND GULL-WING P...

DCV010505 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
DCV010505
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·UP TO 85% EFFICIENCY
·THERMAL PROTECTION
·DEVICE-TO-DEVICE SYNCHRONIZATION
·SHORT-CIRCUIT PROTECTION
·EN55022 CLASS B EMC PERFORMANCE
·UL1950 RECOGNIZED COMPONENT
·JEDEC PDIP-14 AND GULL-WING PACKAGES


Application

·INDUSTRIAL CONTROL AND INSTRUMENTATION
·POINT-OF-USE POWER CONVERSION
·GROUND LOOP ELIMINATION
·DATA ACQUISITION
·TEST EQUIPMENT
·SECONDARY ISOLATION CIRCUITS


Pinout

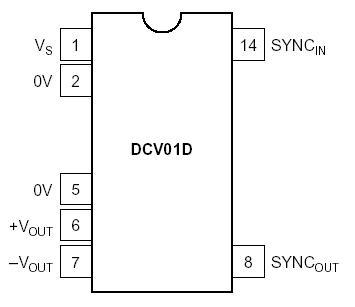

Connection Diagram


Specifications

Input Voltage:
5V Input Models ................................................................................. 7V
15V Input Models ............................................................................. 18V
24V Input Models ............................................................................. 29V
Storage Temperature .............................................. 60°C to +125°C
Lead Temperature (soldering, 10s) ............................................ 270°C


Description

The DCV01 series is a family of 1W, 1500Vrms isolated, unregulated DC/DC converters. Requiring a minimum of external components and including onchip device protection, the DCV01 series provides extra features such as output disable and synchronization of switching frequencies.

The use of a highly integrated package design results in highly reliable products with a power density of 40W/in3 (2.4W/cm3). This combination of features, high isolation, and small size makes the DCV01 suitable for a wide range of applications.
