BU808DF, BU808DFI, BU808DFI(147Y)

Table of contents:
Info of BU808DF
Info of BU808DFI
Info of BU808DFI(147Y)

BU808DF, BU808DFI, BU808DFI(147Y) Selling Leads, Datasheet

MFG:STMicroelectronics Category:Discrete Semiconductor Products Package Cooled:TO-220 D/C:08/09+

BU808DF, BU808DFI, BU808DFI(147Y) Datasheet download

Five Points

Part Number: BU808DFI

Category: Discrete Semiconductor Products

MFG: STMicroelectronics

Package Cooled: TO-220

D/C: 08/09+

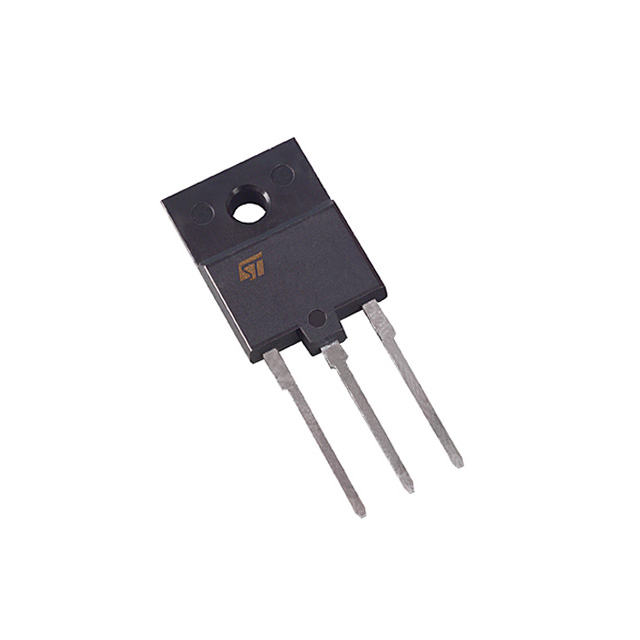

Description: IC TRANSISTR DARL NPN ISOWATT218

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

BU808DFI Parameters

Technical/Catalog Information	BU808DFI
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Transistor Type	NPN - Darlington
Voltage - Collector Emitter Breakdown (Max)	700V
Current - Collector (Ic) (Max)	8A
Power - Max	52W
DC Current Gain (hFE) (Min) @ Ic, Vce	60 @ 5A, 5V
Vce Saturation (Max) @ Ib, Ic	1.6V @ 500mA, 5A
Frequency - Transition	-
Current - Collector Cutoff (Max)	400A
Mounting Type	Through Hole
Package / Case	ISOWATT-218-3
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BU808DFI BU808DFI

BU808DFI General Description

The BU808DFI is a NPN transistor in monolithic Darlington configuration. It is manufactured using Multiepitaxial Mesa technology for cost-effective high performance.

BU808DFI Maximum Ratings

Symbol	Parameter	Value	Unit
V_CBO	Collector-Base Voltage (IE = 0)	1400	V
V_CEO	Collector-Emit ter Voltage (IB = 0)	700	V
V_EBO	Emitter-Base Voltage (I_C = 0)	5	V
I_C	Collector Current	8	A
I_CM	Collector Peak Current (t_p < 5 ms)	10	A
I_B	Base Current	3	A
I_BM	Base Peak Current (t_p < 5 ms)	6	A
P_tot	Total Dissipation at T_c = 25	52	W
T_stg	Storage Temperature	-65 to 150
T_j	Max. Operating Junction Temperature	150

BU808DFI Features

·STMicroelectronics PREFERRED SALESTYPE
· NPN MONOLITHIC DARLINGTON WITH INTEGRATED FREE-WHEELING DIODE
· HIGH VOLTAGE CAPABILITY ( > 1400 V )
· HIGH DC CURRENT GAIN ( TYP. 150 )
· U.L. RECOGNISED ISOWATT218 PACKAGE (U.L. FILE # E81734 (N))
·LOW BASE-DRIVE REQUIREMENTS
·DEDICATED APPLICATION NOTE AN1184

BU808DFI Typical Application

· COST EFFECTIVE SOLUTION FOR HORIZONTAL DEFLECTION IN LOW END TV UP TO 21 INCHES.
