AO6407L, AO6408L, AO6409

Table of contents:
Info of AO6407L
Info of AO6408L
Info of AO6409

AO6407L, AO6408L, AO6409 Selling Leads, Datasheet

MFG:Alpha & Omega Semiconductor Inc (VA) Category:Discrete Semiconductor Products Package Cooled:SOT-163 D/C:09+(ROHS)

AO6407L, AO6408L, AO6409 Datasheet download

Five Points

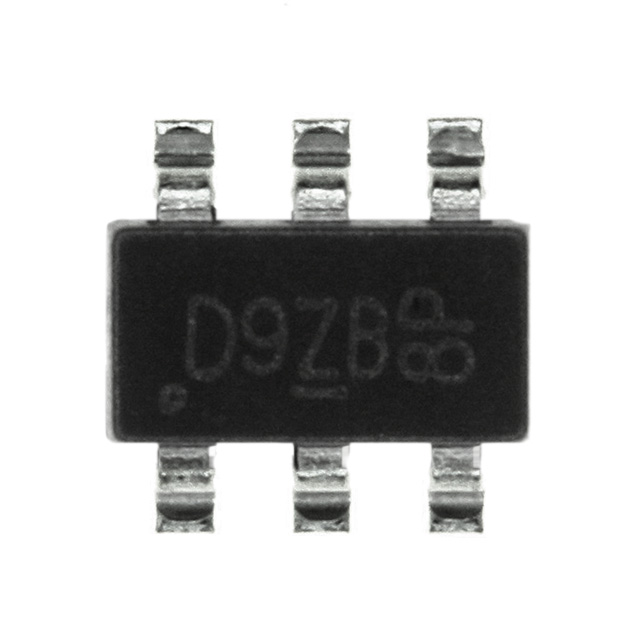

Part Number: AO6409

Category: Discrete Semiconductor Products

MFG: Alpha & Omega Semiconductor Inc (VA)

Package Cooled: SOT-163

D/C: 09+(ROHS)

Description: MOSFET P-CH -20V -5A 6-TSOP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

AO6409 Parameters

Technical/Catalog Information	AO6409
Vendor	Alpha & Omega Semiconductor Inc (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25° C	5A
Rds On (Max) @ Id, Vgs	45 mOhm @ 5A, 4.5V
Input Capacitance (Ciss) @ Vds	1450pF @ 10V
Power - Max	2W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	17.2nC @ 4.5V
Package / Case	6-TSOP
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AO6409 AO6409 785 1074 6 ND 78510746ND 785-1074-6

AO6409 General Description

The AO6409 uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 1.8V. This device is suitable for use as a load switch or in PWM applications. It is ESD protected. AO6409L ( Green Product ) is offered in a lead-free package.

AO6409 Maximum Ratings

Paramete		Symbol	Maximum	Units
Drain-Source Voltage		V_DS	-20	V
Gate-Source Voltage		V_GS	±8	V
Continuous Drain Current ^A	T_A=25°C	I_D	-5.0	A
	T_A=70°C		-4.2
Pulsed Drain Current^B		I_DM	-30
Power Dissipation ^A	T_A=25°C	P_D	2	W
	T_A=70°C		1.28
Junction and Storage Temperature Range		T_J, T_STG	-55 to 150	°C

AO6409 Features

V_DS (V) = -20V
I_D = -5 A
R_DS(ON) < 45m (V_GS = -4.5V)
R_DS(ON) < 56m (V_GS= -2.5V)
R_DS(ON) < 75m (V_GS = -1.8V)
ESD Rating: 3000V HBM
