74LCX173, 74LCX2244, 74LCX2244MSA

Table of contents:
Info of 74LCX173
Info of 74LCX2244
Info of 74LCX2244MSA

74LCX173, 74LCX2244, 74LCX2244MSA Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Integrated Circuits (ICs) Package Cooled:SOP5.2 D/C:02+

74LCX173, 74LCX2244, 74LCX2244MSA Datasheet download

Five Points

Part Number: 74LCX2244MSA

Category: Integrated Circuits (ICs)

MFG: Fairchild Semiconductor

Package Cooled: SOP5.2

D/C: 02+

Description: IC BUFF DVR LOW V N-INV 20SSOP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

74LCX2244 General Description

The LCX2244 contains eight non-inverting buffers with 3- STATE outputs. The device may be employed as a memory address driver, clock driver and bus-oriented transmitter/receiver. The LCX2244 is designed for low voltage (2.5V or 3.3V) V_CC applications with capability of interfacing to a 5V signal environment. The 26W-series resistors help reduce output overshoot and undershoot.

The LCX2244 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

74LCX2244 Maximum Ratings

Symbol	Parameter	Value	Conditions	Units
V_CC	Supply Voltage	−0.5 to +7.0		V
V_I	DC Input Voltage	−0.5 to +7.0		V
V_O	DC Output Voltage	−0.5 to +7.0 −0.5 to V_CC +0.5	Output in3-STATE Output in HIGH or LOW State (Note4)	V
I_IK	DC Input Diode Current	−50	V_I< GND	mA
I_OK	DC Output Diode Current	−50 +50	V_O < GND V_O > V_CC	mA
I_O	DC Output Source/Sink Current	±50		mA
I_CC	DC Supply Current per Supply Pin	±100		mA
I_GND	DC Ground Current per Ground Pin	±100		mA
T_STG	Storage Temperature	−65 to +150		°C

74LCX2244 Features

5V tolerant inputs and outputs
2.3V3.6V V_CC specifications provided
7.5 ns t_PD max (V_CC = 3.3V) 10 mA I_CC max
Power down high impedance inputs and outputs
26W-series resistors in the outputs
Supports live insertion/withdrawal (Note 1)
±12 mA output drive (V_CC = 3.0V)
Implements patented noise/EMI reduction circuitry
Latch-up performance exceeds 500 mA
ESD performance:
Human body model > 2000V
Machine model > 200V

74LCX2244 Connection Diagram

74LCX2244MSA Parameters

Technical/Catalog Information	74LCX2244MSA
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Logic Type	Line Driver, Non-Inverting

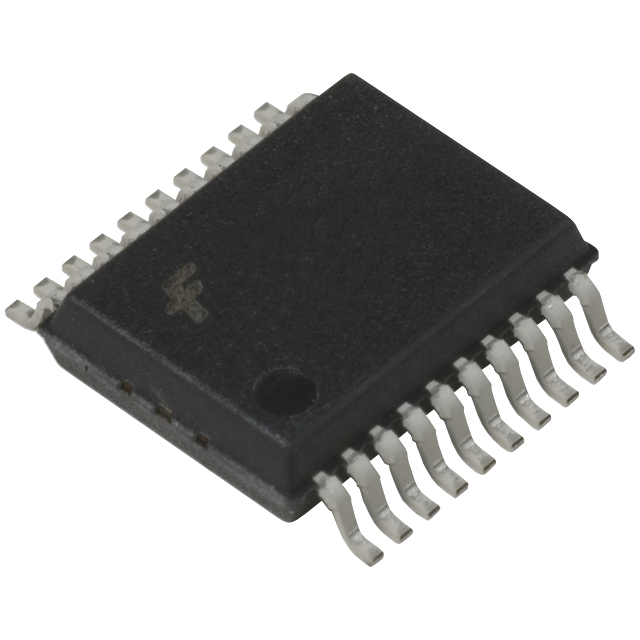

Package / Case	20-SSOP
Packaging	Tube
Mounting Type	Surface Mount
Number of Bits per Element	8
Number of Elements	1 - Single
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	2 V ~ 3.6 V
Current - Output High, Low	12mA, 12mA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	74LCX2244MSA 74LCX2244MSA
