Features:

 5V tolerant inputs
 2.3V3.6V VCC specifications provided
 5.2 ns tPD max (VCC   3.3V), 10 A ICC max
 Power down high impedance inputs and outputs
 ±24 mA output drive (VCC   3.0V)
Implements patented noise/EMI reduction circuitry
 Latch-up performance exceeds JEDEC 78 conditions
ESD performance:
   Human body model ! 2000V
   Machine model ! 200V
Leadless Pb-Free DQFN package


Pinout

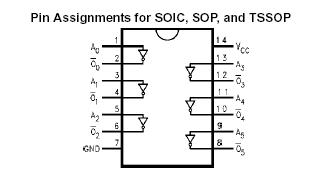

Connection Diagram


Specifications

Symbol Parameter Value Conditions Units
VCC Supply Voltage −0.5 to +7.0   V
VI DC Input Voltage −0.5 to +7.0   V
VO DC Output Voltage −0.5 to VCC + 0.5 Output in HIGH or LOW State (Note 4) V
IIK DC Input Diode Current −50 VI < GND mA
IOK DC Output Diode Current −50
+50 		VO < GND
VO > VCC		 mA
IO DC Output Source/Sink Current ±50   mA
ICC DC Supply Current per Supply Pin ±100   mA
IGND DC Ground Current per Ground Pin ±100   mA
TSTG Storage Temperature −65 to +150   °C



Description

   The 74LCX04 contains six inverters. The inputs tolerate voltages up to 7V allowing the interface of 5V systems to 3V systems.

   The 74LCX04 is fabricated with advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
