74LCX02

Features:

 5V TOLERANT INPUTS
HIGH SPEED :t_PD = 4.4ns (MAX.) at V_CC = 3V
 POWER DOWN PROTECTION ON INPUTS AND OUTPUTS
SYMMETRICAL OUTPUT IMPEDANCE:|I_OH| = I_OL = 24mA (MIN) at V_CC = 3V
PCI BUS LEVELS GUARANTEED AT 24 mA
 BALANCED PROPAGATION DELAYS: t_PLH t_PHL
OPERATING VOLTAGE RANGE:V_CC(OPR) = 2.0V to 3.6V (1.5V Data Retention)
PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 02
LATCH-UP PERFORMANCE EXCEEDS 500mA (JESD 17)
ESD PERFORMANCE:
   HBM > 2000V (MIL STD 883 method 3015);
   MM > 200V

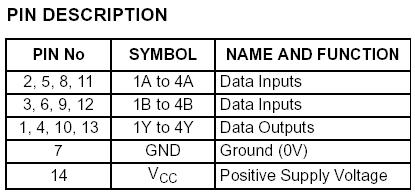

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	Supply Voltage	-0.5 to +7.0	V
VI	DC Input Voltage	-0.5 to +7.0	V
VO	DC Output Voltage (VCC = 0V)	-0.5 to +7.0	V
VO	DC Output Voltage (High or Low State) (note 1)	-0.5 to VCC + 0.5	V
IIK	DC Input Diode Current	- 50	mA
IOK	DC Output Diode Current (note 2)	- 50	mA
IO	DC Output Current	± 50	mA
ICC	DC Supply Current per Supply Pin	± 100	mA
IGND	DC Ground Current per Supply Pin	± 100	mA
Tstg	Storage Temperature	-65 to +150	°C
TL	Lead Temperature (10 sec)	300	°C

Description

    The 74LCX02 is a low voltage CMOS QUAD 2-INPUT NOR GATE fabricated with sub-micron silicon gate and double-layer metal wiring C²MOS technology. It is ideal for low power and high speed 3.3V applications; it can be interfaced to 5V signal environment for inputs.

   The 74LCX02 has same speed performance at 3.3V than 5V AC/ACT family, combined with a lower power consumption.

   All inputs and outputs of the 74LCX02 are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.
