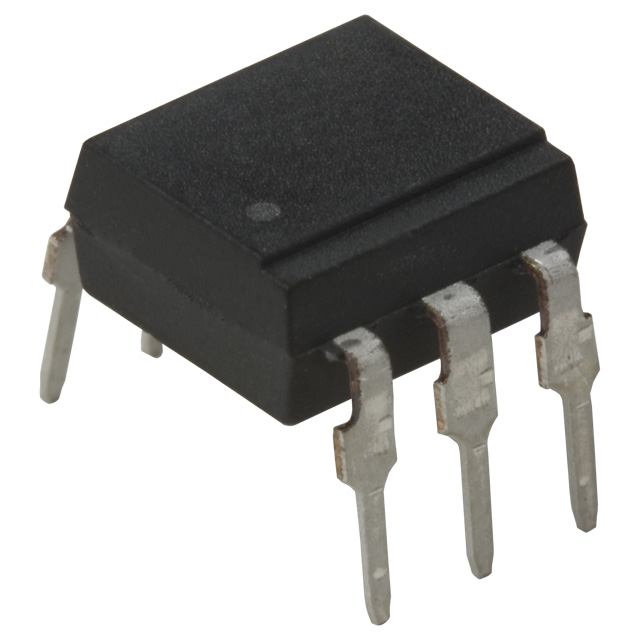

The 4N45/46 optocouplers contain a GaAsP light emitting diode optically coupled to a high gain photodetector IC.
The excellent performance over temperature results from the inclusion of an integrated emitter-base bypass resistor which shunts photodiode and first stage leakage currents as well as bleeding off excess base drive to ground. External access to the second stage base provides the capability for better noise rejection than a conventional photodarlington detector. An external resistor or capacitor at the base can be added to make a gain-bandwidth or input current threshold adjustment. The base lead can also be used for feedback.
The high current transfer ratio at very low input currents permits circuit designs in which adequate margin can be allowed for the effects of optical coupling variations.
The 4N46 has a 350% minimum CTR at an input current of only 0.5 mA making it ideal for use in low input current applications such as MOS, CMOS and low power logic interfacing. Compat-ibility with high voltage CMOS logic systems is assured by the 20 V minimum breakdown voltage of the output transistor and by the guaranteed maximum output leakage (I ) at 18 V.
The 4N45 has a 250% minimum CTR at 1.0 mA input current and a 7 V minimum breakdown voltage rating.
Selection for lower input current down to 250 A is available upon request.
4N46 Maximum Ratings
Storage Temperature, TS ........................................-55 to +125 Operating Temperature, TA ......................................-40 to +85 Lead Solder Temperature, max................................. 260 for 10 s (1.6 mm below seating plane) Average Input Current, IF................................................. 20 mA[1] Peak Input Current, IF......................................................... 40 mA (50% duty cycle, 1 ms pulse width) Peak Transient Input Current, IF............................................1.0 A ( 1 s pulse width, 300 pps) Reverse Input Voltage, VR .........................................................5 V Input Power Dissipation, PI............................................ 35 mW[2] Output Current, IO (Pin 5) ............................................... 60 mA[3] Emitter-Base Reverse Voltage (Pins 4-6).................................0.5 V Output Voltage, VO (Pin 5-4) 4N45 ............................................................................. -0.5 to 7 V 4N46 ........................................................................... -0.5 to 20 V Output Power Dissipation ...............................................100 mW[4] Infrared and Vapor Phase Reflow Temperature (Option #300) ..........................................see Fig. 1, Thermal Profile
4N46 Features
* High Current Transfer Ratio1500% Typical * Low Input Current Requirement0.5 mA * Performance Guaranteed over 0°C to 70°C Temperature Range * Internal Base-Emitter Resistor Minimizes Output Leakage * Gain-Bandwidth Adjustment Pin * Safety Approval UL Recognized -2500 V rms for 1 Minute
4N46 Typical Application
* Telephone Ring Detector * Digital Logic Ground Isolation * Low Input Current Line Receiver * Line Voltage Status IndicatorLow Input Power Dissipation * Logic to Reed Relay Interface * Level Shifting * Interface Between Logic Families
