mPD75P0116

Features: · Compatible with mPD750108· Memory capacity:• PROM : 16384 ´ 8 bits• RAM : 512 ´ 4 bits· Can operate in same power supply voltage as the mask ROM version mPD750108• VDD = 1.8 to 5.5 VPinoutSpecifications Parameter Symbo Conditions Ratings Un...

product image

mPD75P0116 Picture
See larger image
SeekIC No. : 004426239 Detail

mPD75P0116: Features: · Compatible with mPD750108· Memory capacity:• PROM : 16384 ´ 8 bits• RAM : 512 ´ 4 bits· Can operate in same power supply voltage as the mask ROM version mPD750108...

mPD75P0116 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
mPD75P0116
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Compatible with mPD750108
· Memory capacity:
• PROM : 16384 ´ 8 bits
• RAM : 512 ´ 4 bits
· Can operate in same power supply voltage as the mask ROM version mPD750108
• VDD = 1.8 to 5.5 V


Pinout

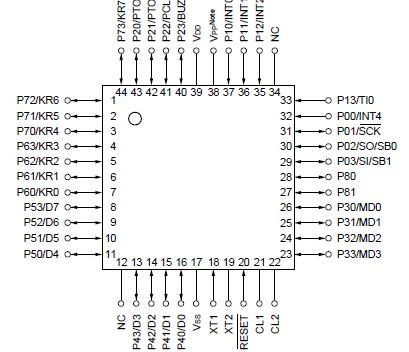

Connection Diagram


Specifications

Parameter Symbo Conditions Ratings Unit
Supply voltage VDD   0.3 to + 7.0 V
PROM supply voltage VPP   0.3 to + 13.5 V
Input voltage VI1 Other than port 4, 5 0.3 to VDD + 0.3 V
Input voltage VI2 Port 4, 5 (N-ch open drain) 0.3 to + 14 V
Output voltage VO   0.3 to VDD + 0.3 V
High-level output current IOH Per pin 10 mA
High-level output current IOH Total of all pins 30 mA
Low-level output current IOL Per pin 30 mA
Low-level output current IOL Total of all pins 220 mA
Operating ambienttemperature TA   40 to + 85 °C
Storage temperature Tstg   65 to + 150 °C



Description

The mPD75P0116 replaces the mPD750108's internal mask ROM with a one-time PROM and features expanded ROM capacity.

Because the mPD75P0116 supports programming by users, it is suitable for use in prototype testing for system development using the mPD750104, 750106, or 750108 products, and for use in small-lot production.
