Features:

•Number of instructions: 74
•Minimum instruction execution time: 30 ns (@ 33 MHz operation)
•General-purpose registers: 32 bits ´ 32 registers
•Instruction set optimized for control applications
•On-chip memory ROM: 256 KB (PD703025A) 128 KB (PD703003A) 96 KB (PD703004A) RAM: 8 KB (PD703025A) 4 KB (PD703003A, 703004A)
•Advanced on-chip interrupt controller
•Real-time pulse unit suitable for control operations
•Powerful serial interface (on-chip dedicated baud rate generator)
•On-chip clock generator
•10-bit resolution A/D converter: 8 channels
•8-bit resolution D/A converter: 2 channels
•8-/9-/10-/12-bit resolution PWM: 2 channels
•Power saving functions




Application

•AV: Camcorders, VCRs, etc.
•Office equipment: PPCs, LBPs, printers, etc.
•Industrial equipment: Motor controllers, NC machine tools, etc.
•Communications equipment: Mobile telephones, etc.




Pinout

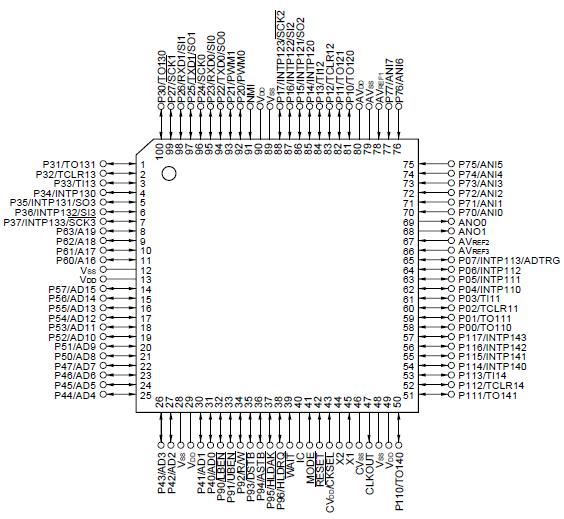

  Connection Diagram


Specifications

Parameter Symbol Conditions   Ratings Unit
Power supply voltage VDD VDD pin 0.5 to +7.0 V
CVDD CVDD pin 0.5 to VDD + 0.3 V
CVSS CVSS pin 0.5 to +0.5 V
AVDD AVDD pin 0.5 to VDD + 0.3 V
AVSS AVSS pin 0.5 to +0.5 V
Input voltage VI1 Note, VDD = 5.0 V ±10% 0.5 to VDD + 0.3 V
Clock input voltage VK X1 pin, VDD = 5.0 V ±10% 0.5 to VDD + 1.0 V
Output current, low IOL Per pin 4.0 mA
Total for all pins 100 mA
Output current, high IOH Per pin 4.0 mA
    Total for all pins 100 mA
Output voltage VO VDD = 5.0 V ±10% 0.5 to VDD + 0.3 V
Analog input voltage VIAN P70/ANI0 to P77/ANI7 AVDD > VDD 0.5 to VDD + 0.3 V
VDDAVDD 0.5 to AVDD + 0.3 V
Analog reference input voltage AVREF AVREF1 to AVREF3 AVDD > VDD 0.5 to VDD + 0.3 V
VDDAVDD 0.5 to AVDD + 0.3 V
Operating ambient temperature TA     40 to +85 °C
Storage temperature Tstg     65 to +150
