Product Details

Description



Features:

Low power supply
- VDD: 1.8V VDDQ : 1.8V
LVCMOS compatible with multiplexed address
Two banks / Pulse RAS
MRS cycle with address key programs
- CAS Latency (2 & 3)
- Burst Length (1,2,4,8 & full page)
- Burst Type (Sequential & Interleave)
All inputs are sampled at the positive going edge of the system clock
Deep Power Down Mode
DQM for masking
Auto & self refresh
Clock Frequency (max) : 105MHz @ CL=3 (-95)
133MHz @ CL=3 (-75)
64ms refresh period (4K cycle)
Self refresh with programmable refresh period through EMRS cycle
Programmable Power Reduction Feature by partial array activation during Self-refresh through EMRS cycle
Auto TCSR
Industrial operating temperature range: -40ºC to +85ºC for -U series.
Available in 54-pin TSOP(II) package
Package is available to lead free (-F series)

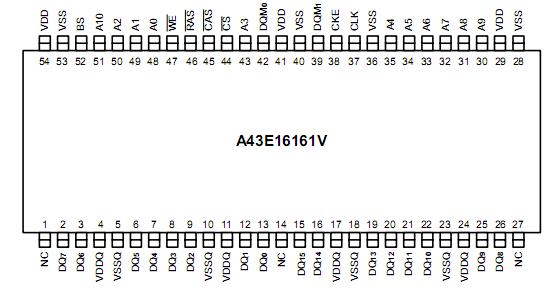

Pinout

Connection Diagram Connection Diagram




Specifications

Voltage on any pin relative to VSS (Vin, Vout ) . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -1.0V to +2.6V
Voltage on VDD supply relative to VSS (VDD, VDDQ )
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-1.0V to + 2.6V
Storage Temperature (TSTG) . . . . . . . . . .-55°C to +150°C
Soldering Temperature X Time (TSLODER) . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C X 10sec
Power Dissipation (PD) . . . . . . . . . . . . . . . . . . . . . . . . 0.8W
Short Circuit Current (Ios) . . . . . . . . . . . . . . . . . . . . 50mA






Description

The A43E16161 is 33,554,432 bits Low Power synchronous high data rate Dynamic RAM organized as 2 X 1,048,576 words by 16 bits, fabricated with AMIC's high performance CMOS technology. Synchronous design allows precise cycle control with the use of system clock. I/O transactions are possible on every clock cycle. Range of operating frequencies, programmable latencies allows the same device to be useful for a variety of high bandwidth, high performance memory system applications.
