Features:

• High Performance 16-bit CPU with 5-Stage Pipeline
   25 ns Instruction Cycle Time at 40 MHz CPU Clock (Single-Cycle Execution)
   1-Cycle Multiplication (16 * 16 bit), Background Division (32 / 16 bit) in 21 Cycles
   1-Cycle Multiply-and-Accumulate (MAC) Instructions
   Enhanced Boolean Bit Manipulation Facilities
   Zero-Cycle Jump Execution
   Additional Instructions to Support HLL and Operating Systems
   Register-Based Design with Multiple Variable Register Banks
   Fast Context Switching Support with Two Additional Local Register Banks
   16 Mbytes Total Linear Address Space for Code and Data
   1024 Bytes On-Chip Special Function Register Area (C166 Family Compatible)
• 16-Priority-Level Interrupt System with up to 75 Sources, Sample-Rate down to 50 ns
• 8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via Peripheral Event Controller (PEC), 24-Bit Pointers Cover Total Address Space
• Clock Generation via on-chip PLL (factors 1:0.15 . 1:10), or via Prescaler (factors 1:1 . 60:1)
• On-Chip Memory Modules
   2 Kbytes On-Chip Dual-Port RAM (DPRAM)
   2 Kbytes On-Chip Data SRAM (DSRAM)
   2 Kbytes On-Chip Program/Data SRAM (PSRAM)
   up to 128 Kbytes On-Chip Program Memory (Flash Memory)
• On-Chip Peripheral Modules
   Two 16-Channel General Purpose Capture/Compare Units (12 Input/Output Pins)
   Capture/Compare Unit for flexible PWM Signal Generation (CAPCOM6) (3/6 Capture/Compare Channels and 1 Compare Channel)
   Multi-Functional General Purpose Timer Unit with 5 Timers
   Two Synchronous/Asynchronous Serial Channels (USARTs)
   Two High-Speed-Synchronous Serial Channels
   On-Chip TwinCAN Interface (Rev. 2.0B active) with 32 Message Objects (Full CAN/Basic CAN) on Two CAN Nodes, and Gateway Functionality
   On-Chip Real Time Clock
• Idle, Sleep, and Power Down Modes with Flexible Power Management
• Programmable Watchdog Timer and Oscillator Watchdog
• Up to 12 Mbytes External Address Space for Code and Data
   Programmable External Bus Characteristics for Different Address Ranges
   Multiplexed or Demultiplexed External Address/Data Buses
   Selectable Address Bus Width
   16-Bit or 8-Bit Data Bus Width
   Four Programmable Chip-Select Signals
• Up to 79 General Purpose I/O Lines, partly with Selectable Input Thresholds and Hysteresis
• On-Chip Bootstrap Loader
• Supported by a Large Range of Development Tools like C-Compilers, Macro-Assembler Packages, Emulators, Evaluation Boards, HLL-Debuggers, Simulators, Logic Analyzer Disassemblers, Programming Boards
• On-Chip Debug Support via JTAG Interface
• 100-Pin TQFP Package, 0.5 mm (19.7 mil) pitch

Pinout

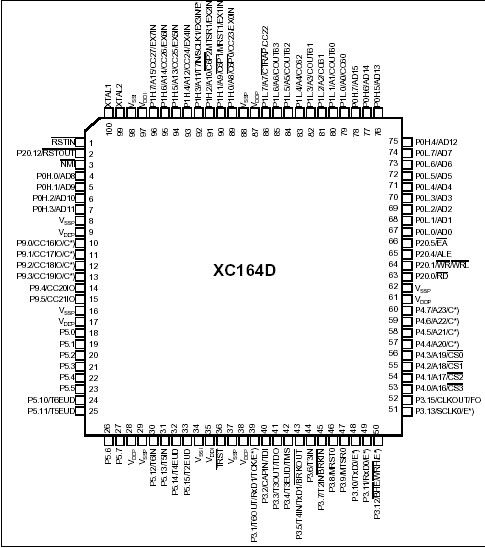

Connection Diagram

Specifications

Parameter	Symbol	Limit Values		Unit	Notes
Parameter	Symbol	Min.	Max.	Unit	Notes
Storage temperature	T_ST	-65	150	°C	-
Junction temperature	T_J	-40	150	°C	under bias
Voltage on V_DDI pins with respect to ground (V_SS)	V_DDI	-0.5	3.25	V	-
Voltage on V_DDP pins with respect to ground (V_SS)	V_DDP	-0.5	6.2	V	-
Voltage on any pin with respect to ground (V_SS)	V_IN	-0.5	V_DDP + 0.5	V	-
Input current on any pin during overload condition	-	-10	10	mA	-
Absolute sum of all input currents during overload condition	-	-	\|100\|	mA	-

Description

The XC164D derivatives are high-performance members of the Infineon XC166 Family of full featured single-chip CMOS microcontrollers. These devices extend the functionality and performance of the C166 Family in terms of instructions (MAC unit), peripherals, and speed. They combine high CPU performance (up to 40 million instructions per second) with high peripheral functionality and enhanced IO-capabilities.XC164D also provide clock generation via PLL and various on-chip memory modules such as program Flash, program RAM, and data RAM.
