XC161CJ-16F

• High Performance 16-bit CPU with 5-Stage Pipeline 25 ns Instruction Cycle Time at 40 MHz CPU Clock (Single-Cycle Execution) 1-Cycle Multiplication (16 * 16 bit), Background Division (32 / 16 bit) in 21 Cycles 1-Cycle Multiply-and-Accumulate (MAC) Instructions Enhanced Boolean Bit Manipulation Facilities Zero-Cycle Jump Execution Additional Instructions to Support HLL and Operating Systems Register-Based Design with Multiple Variable Register Banks Fast Context Switching Support with Two Additional Local Register Banks 16 Mbytes Total Linear Address Space for Code and Data 1024 Bytes On-Chip Special Function Register Area (C166 Family Compatible)
• 16-Priority-Level Interrupt System with 73 Sources, Sample-Rate down to 50 ns
• 8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via Peripheral Event Controller (PEC), 24-Bit Pointers Cover Total Address Space
• Clock Generation via on-chip PLL (factors 1:0.15 . 1:10), or via Prescaler (factors 1:1 . 60:1)
• On-Chip Memory Modules 2 Kbytes On-Chip Dual-Port RAM (DPRAM) 4 Kbytes On-Chip Data SRAM (DSRAM) 2 Kbytes On-Chip Program/Data SRAM (PSRAM) 128 Kbytes On-Chip Program Memory (Flash Memory)
• On-Chip Peripheral Modules 12-Channel A/D Converter with Programmable Resolution (10-bit or 8-bit) and Conversion Time (down to 2.55 s or 2.15 s) Two 16-Channel General Purpose Capture/Compare Units (32 Input/Output Pins) Multi-Functional General Purpose Timer Unit with 5 Timers Two Synchronous/Asynchronous Serial Channels (USARTs) Two High-Speed-Synchronous Serial Channels On-Chip TwinCAN Interface (Rev. 2.0B active) with 32 Message Objects (Full CAN/Basic CAN) on Two CAN Nodes, and Gateway Functionality  Serial Data Link Module (SDLM), compliant with J1850, supporting Class 2 IIC Bus Interface (10-bit addressing, 400 kbit/s) with 3 Channels (multiplexed) On-Chip Real Time Clock, Driven by Dedicated Oscillator
• Idle, Sleep, and Power Down Modes with Flexible Power Management
• Programmable Watchdog Timer and Oscillator Watchdog
• Up to 12 Mbytes External Address Space for Code and Data Programmable External Bus Characteristics for Different Address Ranges Multiplexed or Demultiplexed External Address/Data Buses Selectable Address Bus Width  16-Bit or 8-Bit Data Bus Width Five Programmable Chip-Select Signals Hold- and Hold-Acknowledge Bus Arbitration Support
• Up to 99 General Purpose I/O Lines, partly with Selectable Input Thresholds and Hysteresis
• On-Chip Bootstrap Loader
• Supported by a Large Range of Development Tools like C-Compilers, Macro- Assembler Packages, Emulators,  valuation Boards, HLL-Debuggers, Simulators, Logic Analyzer Disassemblers, Programming Boards
• On-Chip Debug Support via JTAG Interface

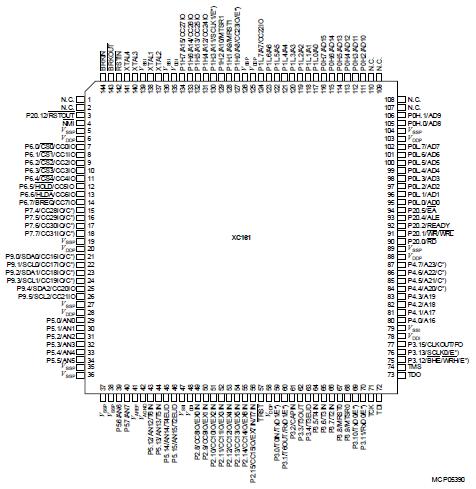

• 144-Pin TQFP Package, 0.5 mm (19.7 mil) pitch

The architecture of the XC161 combines advantages of RISC, CISC, and DSP processors with an advanced peripheral subsystem in a very well-balanced way. In addition, the on-chip memory blocks allow the design of compact systems-on-silicon with maximum performance (computing, control, communication).

The XC161 on-chip memory blocks (program code-memory and SRAM, dual-port RAM, data SRAM) and the set of generic peripherals are connected to the CPU via separate buses. Another bus, the LXBus, connects additional on-chip resources as well as external resources (see Figure 3).

This bus structure of XC161 enhances the overall system performance by enabling the concurrent operation of several subsystems of the XC161.

The following block diagram gives an overview of the different on-chip components and of the advanced, high bandwidth internal bus structure of the XC161.
