Product Details

Description



Features:

• Low-power consumption
   Active: 40mA at 35ns
   Stand-by: 10 mA (CMOS input/output)
                      2  mA CMOS input/output, L version
• Single + 2.7 to 3.3V Power Supply
• Equal access and cycle time
• 35/45/55/70/85/100 ns access time
• Easy memory expansion with CE1, CE2 nd OE inputs
• 1.0V data retention mode
• TTL compatible, Tri-state input/output
• Automatic power-down when deselected
• Package available: 32-TSOP1 / STSOP
• 48 Ball CSP_BGA


Pinout

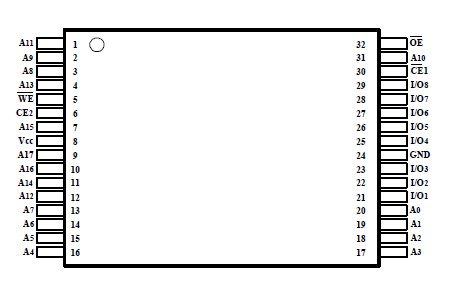

Connection Diagram


Specifications

Parameter
Symbol
Minimum
Maximum
Unit
Voltage on Any Pin Relative to Gnd
Vt
-0.5
4.6
V
Power Dissipation
PT
-
1.0
W
Storage Temperature (Plastic)
Tstg
-55
+150
0C
Temperature Under Bias
Tbias
-40
+85
0C



Description

The V62C3802048L(L) is a low power CMOS Static RAM organized s 262,144 words by 8 bits. Easy memory expansion is provided y an active LOW CE1, an active HIGH CE2, an active OW OE, and Tri-state I/O's. This device has an automatic ower-down mode feature whendeselected.

Writing to the device is accomplished by taking Chip Enable  (CE1) with Write Enable (WE) LOW, and Chip Enable  (CE2) HIGH. Readingfrom the device is performed by aking Chip Enable 1 (CE1) with Output Enable (OE) OW while Write Enable (WE ) and Chip Enable 2 (CE2) s HIGH. The I/O pins are placed in a high-impedance state hen the device is deselected: the outputs are disabled during write cycle.

The V62C3802048L(L) comes with a 1V data retention feature nd Lower Standby Power. The V62C3802048L is available in  32-pin 8 x 20 mm TSOP1/8 x 13.4mm STSOP and CSP type 8-fpBGA packages.
