Product Details

Description

Features:

High-speed: 70, 85 ns
Ultra low CMOS standby current of 4A (max.)
Fully static operation
All inputs and outputs directly TTL compatible
Three state outputs
Ultra low data retention current (V_CC = 1.2V)
Operating voltage: 2.3V 3.0V
Packages
44-pin TSOP (Standard)
48-Ball CSP BGA (8mm x 10mm)

Pinout

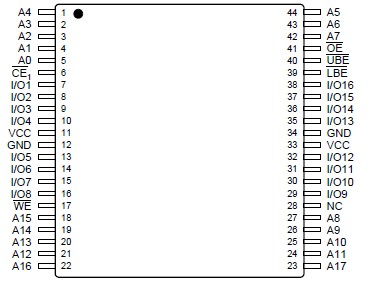

Connection Diagram

Specifications

Symbol	Parameter	Commercial	Industrial	Units
V_CC	Supply Voltage	-0.5 to V_CC +0.5	-0.5 to V_CC +0.5	V
V_N	Input Voltage	-0.5 to V_CC +0.5	-0.5 to V_CC+0.5	V
V_DQ	Input/Output Voltage Applied	V_CC + 0.3	V_CC + 0.3	V
T_BIAS	Temperature Under Bias	-10 to +125	-65 to +135
T_STG	Storage Temperature	-55 to +125	-65 to +150

Description

The V62C2164096 is a 4,194,304-bit static random-access memory organized as 262,144 words by 16 bits. Inputs and three-state outputs are TTL compatible and allow for direct interfacing with common system bus structures.
