V62C1801024L(L)

Features: • Ultra Low-power consumption ative: 20mA at 70ns and-by: 5 mA (CMOS input/output)1 mAMOS input/output, L version• Single +1.8V to 2.2V Power Supply• Equal access and cycle time• 70/85/100/150 ns access time• Easy memory expansion with CE1, CE2 nd OE inputs...

product image

V62C1801024L(L) Picture
See larger image
SeekIC No. : 004540199 Detail

V62C1801024L(L): Features: • Ultra Low-power consumption ative: 20mA at 70ns and-by: 5 mA (CMOS input/output)1 mAMOS input/output, L version• Single +1.8V to 2.2V Power Supply• Equal access and cy...

V62C1801024L(L) Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
V62C1801024L(L)
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Ultra Low-power consumption
                   ative: 20mA at 70ns
                   and-by: 5 mA (CMOS input/output)
                               1 mAMOS input/output, L version
• Single +1.8V to 2.2V Power Supply
• Equal access and cycle time
• 70/85/100/150 ns access time
• Easy memory expansion with CE1, CE2 nd OE inputs
• 1.0V data retention mode
• TTL compatible, Tri-state input/output
• Automatic power-down when deselected

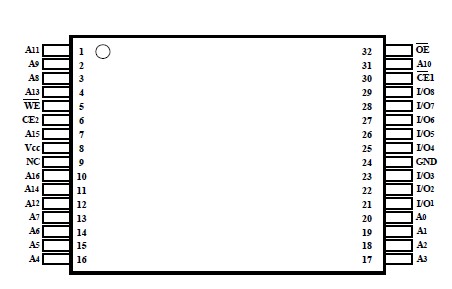

Pinout

Connection Diagram




Specifications

Parameter
Symbol
Minimum
Maximum
Unit
Voltage on Any Pin Relative to Gnd
Vt
-0.5
4.6
V
Power Dissipation
PT
-
1.0
W
Storage Temperature (Plastic)
Tstg
-55
+150
0C
Temperature Under Bias
Tbias
-40
+85
0C



Description

The V62C1801024L(L) is a low power CMOS Static RAM organized s 131,072 words by 8 bits. Easy memory expansion s provided by an active LOW CE1, an active HIGH CE2, an ctive LOW OE, and Tri-state I/O's. This device has an automatic ower-down mode feature when deselected.

Writing to the device is accomplished by taking Chip Enable (CE1 ) with Write Enable (WE) LOW, and Chip Enable (CE2) HIGH. Reading from the device is performed by aking Chip Enable 1 (CE1) with Output Enable (OE) OW while Write Enable (WE ) and Chip Enable 2 (CE2 s HIGH. The I/O pins are placed in a high-impedance state hen the device is deselected: the outputs are disabled uring a write cycle.

The V62C1801024L(L) comes with a 1V data retention feature nd Lower Standby Power. The V62C1801024L is available in 32-pin 8 x 20 mm TSOP1 / STSOP / 48-fpBGA packages.
