Product Details

Description

Features:

· PC Card-ATA/True IDE/CompactFlash compatible host interface
· Automatic sensing of PC Card ATA and 68-pin IDE
· Included 256-byte CIS RAM
· Five PC Card ATA addressing modes
· Host data transfer rate : 20MB/S
· Flash data transfer rate : 10MB/S
· Host Interface : 8/16-bit Access
· Flash Interface : 8-bit Access
· Support 3 power save mode : stop/idle/active
· Support up to 10 flash memories
· Support 32/64/128/256/512Mbit,1Gbit NAND flash memory made by Samsung
· Auto power down function
· ECC function
· Available 100-pin TQFP
· Operating Voltage : 3.3V to 5.0V

Pinout

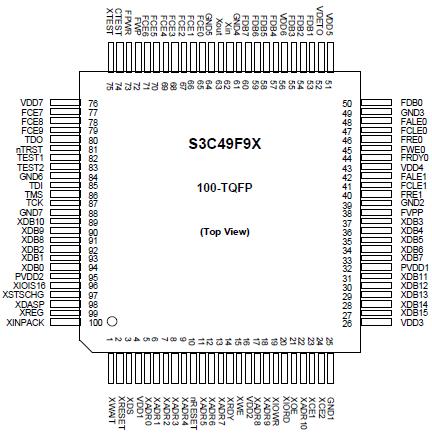

Connection Diagram

Specifications

Symbol	Parameter	Ratings	Unit
V_DD	Supply voltage	0.3 to +7.0	V
V_IN	Input voltage	0.3 to V_DD +0.3	V
I_IN	DC input current	-10	mA
T_STG	Storage temperature	40 to +125
