Product Details

Description

Features:

Architecture
` Integrated system for embedded ethernet applications
` Fully 16/32-bit RISC architecture
` Little/Big-Endian mode supported basically, the internal architecture is big-endian. So, the little-endian mode
   only support for external memory.
` Efficient and powerful ARM7TDMI core
` Cost-effective JTAG-based debug solution
` Boundary scan

System Manager
` 8/16/32-bit external bus support for ROM/SRAM, flash memory, DRAM, and external I/O
` One external bus master with bus request/ acknowledge pins
` Support for EDO/normal or SDRAM
` Programmable access cycle (0-7 wait cycles)
` Four-word depth write buffer
` Cost-effective memory-to-peripheral DMA interface

Unified Instruction/Data Cache
` Two-way, set-associative, unified 8-Kbyte cache
` Support for LRU (least recently used) protocol
` Cache is configurable as an internal SRAM

I2C Serial Interface
` Master mode operation only
` Baud rate generator for serial clock generation

Ethernet Controller
` DMA engine with burst mode
` DMA Tx/Rx buffers (256 bytes Tx, 256 bytes Rx)
` MAC Tx/Rx FIFO buffers (80 bytes Tx, 16 bytes Rx)
` Data alignment logic
` Endian translation
` 100/10-Mbit per second operation
` Full compliance with IEEE standard 802.3
` MII(10/100Mbps) or 7-wire 10-Mbps interface
` Station management signaling
` On-chip CAM (up to 21 destination addresses)
` Full-duplex mode with PAUSE feature
` Long/short packet modes
` PAD generation

HDLCs
` HDLC protocol features:
   - Flag detection and synchronization
   - Zero insertion and deletion
    - Idle detection and transmission
    - FCS generation and detection (16-bit)
    - Abort detection and transmission
` Address search mode (expandable to 4 bytes)
` Selectable CRC or No CRC mode
` Automatic CRC generator preset
` Digital PLL block for clock recovery
` Baud rate generator
` NRZ/NRZI/FM/Manchester data formats for Tx/Rx
` Loop-back and auto-echo modes
` Tx/Rx FIFOs have 8-word (8 * 32-bit) depth
` Selectable 1-word or 4-word data transfer mode
` Data alignment logic
` Endian translation
` Programmable interrupts
` Modem interface
` Up to 10 Mbps operation
` HDLC frame length based on octets
` 2-channel DMA buffer descriptor for Tx/Rx on each HDLC

DMA Controller
` 2-channel General DMA for memory-tomemory, memory-to-UART, UART-to-memory data transfers without
   CPU intervention
` Initiated by a software or external DMA request
` Increments or decrements a source or destination address in 8-bit, 16-bit or 32-bit data transfers
` 4-data burst mode

UARTs
` Two UART (serial I/O) blocks with DMA-based or interrupt-based operation
` High speed(460Kbps) UART support with 32 byte Tx/Rx FIFO and modem interface signals
` Support for 5-bit, 6-bit, 7-bit, or 8-bit serial data transmit and receive
` Automatic baud rate detection
` Eight control character comparison for software control
` Programmable baud rates
` 1 or 2 stop bits
` Odd or even parity
` Break generation and detection
` Parity, overrun, and framing error detection
` *16 clock mode
` Infra-red (IR) Tx/Rx support (IrDA)

Timers
` Two programmable 32-bit timers
` Interval mode or toggle mode operation

Programmable I/O
` 26 programmable I/O ports
` Pins individually configurable to input, output, or I/O mode for dedicated signals

Interrupt Controller
` 21 interrupt sources, including 4 external interrupt sources
` Normal or fast interrupt mode (IRQ, FIQ)
` Prioritized interrupt handling

PLL
` The external clock can be multiplied by on-chip PLL to provide high frequency system clock
` The input frequency range is 10-40 MHz
` The output frequency is 5 times of input clock. To get 50 MHz, input clock frequency should be 10 MHz.

Operating Voltage Range
` 3.3 V ± 5 %

Operating Temperature Range
` 0 to + 70

Operating Frequency
` Up to 50 MHz

Package Type
` 208 pin QFP

Pinout

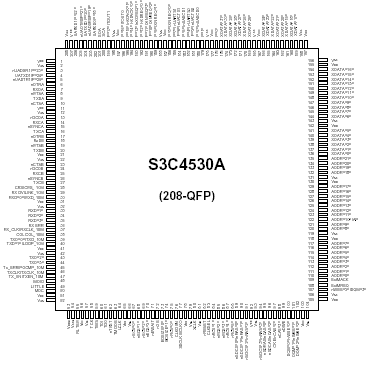

Connection Diagram

Specifications

Parameter	Symbol	Rating		Unit
Supply voltage	V_DD/V_DDA	0.3 to 3.8		V
DC input Voltage	V_IN	3.3 V I/O	0.3 to V_DD + 0.3	V
DC input Voltage	V_IN	5 V-tolerant	0.3 to 5.5	V
DC input current	I_IN	### 10		mA
Operating temperature	T_OPR	0 to 70		###C
Storage temperature	T_STG	40 to 125		###C

Description

Samsung's S3C4530A 16/32-bit RISC microcontroller is a cost-effective, high-performance microcontroller solution for Ethernet-based systems. An integrated Ethernet controller, the S3C4530A, is designed for use in managed communication hubs and routers.

The S3C4530A is built around an outstanding CPU core: the 16/32-bit ARM7TDMI RISC processor designed by Advanced RISC Machines, Ltd. The ARM7TDMI core is a low-power, general purpose microprocessor macro-cell that was developed for use in application-specific and custom-specific integrated circuits. Its simple, elegant, and fully static design is particularly suitable for cost-sensitive and power-sensitive applications.

The S3C4530A offers a configurable 8-Kbyte unified cache/SRAM and Ethernet controller which reduces total system cost. Most of the on-chip function blocks have been designed using an HDL synthesizer and the S3C4530A has been fully verified in Samsung's state-of-the-art ASIC test environment.

Important peripheral functions of S3C4530A include two HDLC channels with buffer descriptor, two UART channels with full modem interface signal and 32byte buffer, 2-channel GDMA, two 32-bit timers, and 26 programmable I/O ports. On-board logic includes an interrupt controller, DRAM/ SDRAM controller, and a controller for ROM/SRAM and flash memory. The System Manager of S3C4530A includes an internal 32-bit system bus arbiter and an external memory controller.

The following integrated on-chip S3C4530A functions are described in detail in this user's manual:
- 8-Kbyte unified cache/SRAM
- I2C interface
- Ethernet controller
- HDLC controller
- GDMA
- UART
- Timers
- Programmable I/O ports
- Interrupt controller
