RF2360

Features: 5MHz to 1500MHz OperationInternally Matched Input and Output20dB Small Signal Gain1.2dB Noise Figure+24dBm Output PowerSingle 6V to 9V Positive Power SupplyApplicationCATV Distribution AmplifiCable ModemsBroadband Gain BlocksLaser Diode DriverReturn Channel AmplifierBase StationsPinoutSp...

product image

RF2360 Picture
See larger image
SeekIC No. : 004476244 Detail

RF2360: Features: 5MHz to 1500MHz OperationInternally Matched Input and Output20dB Small Signal Gain1.2dB Noise Figure+24dBm Output PowerSingle 6V to 9V Positive Power SupplyApplicationCATV Distribution Amp...

RF2360 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RF2360
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

5MHz to 1500MHz Operation
Internally Matched Input and Output
20dB Small Signal Gain
1.2dB Noise Figure
+24dBm Output Power
Single 6V to 9V Positive Power Supply




Application

CATV Distribution Amplifi
Cable Modems
Broadband Gain Blocks
Laser Diode Driver
Return Channel Amplifier
Base Stations




Pinout

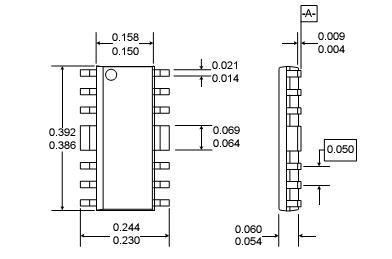

Connection Diagram




Specifications

Parameter Rating Unit
Device Current
Device Voltage
Input RF Power
Output Load VSWR
Ambient Operating Temperature
Storage Temperature		 175
9
+13
20:1
-40 to +85
40 to +150

mA
V
dBm

°C
°C



Frequency (MHz) 5 to 1500
Gain (dB) 20
NF (dB) 1.2
OIP3 (dBm) 33.7
Vd (V) 6 to 9
Icc (mA) 120
Package/Size (Dim in mm) SOP-16 Batwing





Description

The RF2360 is a general purpose, low-cost, high-linearity RF amplifier IC. RF2360 is manufactured on a Gallium Arsenide process and is featured in an SOP-16 batwing package. RF2360 has been designed for use as an easily cas-cadable 75? gain block with a Noise Figure of less than 2dB. Gain flatness better than 0.5dB from 5MHz to 1000MHz, and high linearity make this part ideal for cable TV applications. Other applications include IF and RF amplification in wireless voice and data communication products operating in frequency bands up to 1000MHz.

RF2360 is self-contained with 75? input and output impedances providing less than 2:1 VSWR matching. For higher input and output return losses, see the evaluation schematic.
