Features:

• Single 2.7V to 6.0V Supply
• 6dBm Output Power
• 8dB Small Signal Gain at 900MHz
• 1.8dB Noise Figure at 900MHz
• Low DC Current Consumption of 5mA
• 300MHz to 2500MHz Operation

Application

• Receive or Transmit Low-Noise Amplifiers
• FDD and TDD Communication Systems
• Commercial and Consumer Systems
• Portable Battery Powered Equipment
• Wireless LAN
• ISM Band Applications

Pinout

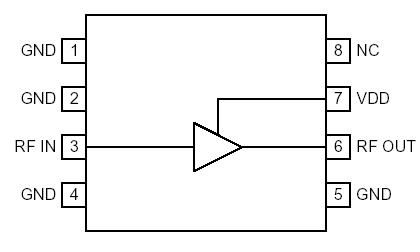

Connection Diagram

Specifications

Parameter	Rating	Unit
Supply Voltage (V_DD) DC Supply Current Input RF Power Operating Ambient Temperature Storage Temperature	-0.5 to +6.5 40 +10 -40 to +85 -40 to +150	VDC mA dBm °C °C

Description

The RF2304 is a low-noise small-signal amplifier.RF2304 is manufactured on a low-cost Gallium Arsenide MESFET process, and has been designed for use as a gain block in high-end communication systems operating from less than 300MHz to above 2.5GHz. With +6dBm output power, RF2304 may also be used as a driver in transmitter applications, or in highly linear receivers. RF2304 is packaged in an 8-lead plastic package and is self-contained, requiring just an inductor and blocking capacitors to operate. The +6dBm output power, combined with the 1.8dB noise figure at 900MHz allows excellent dynamic range for a variety of receive and transmit applications.
