NTE7063

The Vertical PullIn Range is Approximately 10Hz at f_V = 60Hz.
The Horizontal Oscillation Frequency can be Adjusted Stably from 15kHz to 100kHz.
The Horizontal Display can be Shifted Right/Left.
The Horizontal/Vertical Sync Input can be Used Intact Regardless of the Difference in Pulse Polarity and Pulse     Width.
The AFC Feedback Sawtooth Wave can be Obtained by Simply Applying a Flyback Pulse to the IC as a Trigger     Pulse.
Any Duty of the Horizontal Pulse can be Set.
Good Vertical Linearity because DC Bias at Vertical Output Stage is Subjected to Sampling Control Within Retrace     Time.
Excellent Interlace and Vertical Jitter Characteristics on the HighDefinition Display Because of Independent GND     Pins for the Horizontal Block and Vertical Block.

Maximum Supply Voltage, V₁₁, V₂₂  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14V
Allowable Power Dissipation (T_A +65°C), P_dmax  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . .780mW
Operating Temperature Range, T_opr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20° to +85°C
Storage Temperature Range, T_stg. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65° to +125°C

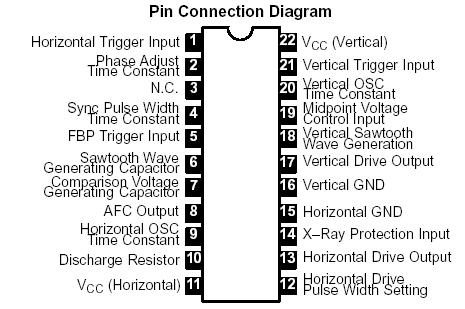

The NTE7063 is a syncdeflection circuit IC dedicated to CRT display use. It can be connected to the NTE1773, NTE1797, or the NTE1855 (for vertical output use) to form a syncdeflection circuit that meets every requirement for CRT use.

So far, ICs for color TV use have been applied to the syncdeflection circuit for CRT display use and general purpose ICs such as oneshot multivibrators, inverters, and a lot of transistors have been used to form the peripherals such as sync input interface, horizontal phase shifter. The NTE7063 contains these peripherals on chip and adopts a stable circuit for horizontal oscillation from 15kHz to 100kHz aiming at improving the characteristics required for CRT display use.

The NTE7063 has independent GND pins for the horizontal block and vertical block, thus facilitating pattern layout for applications where the NTE7063 is used at high frequencies.
